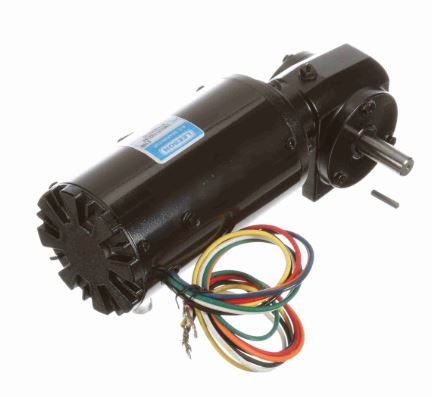

M1125083.00 Leeson | Right Angle 1/15 hp, 85 RPM TENV 115/230V Electric Gear Motor

SKU:
M1125083
Availability:
Please email for availability - Currently out of stock at the factory
Weight:
10.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $595.00
Now: $553.95

CURRENTLY OUT OF STOCK

  • 1/15 hp, 85 RPM, .90/.45 amps, 115/230 Volts
  • Gear Ratio = 20
  • Torque 24 inch pounds
  • Over Hung Pounds = 185
  • TENV = Totally Enclosed Non Ventilated
  • Class F Insulation; Service Factor 1.0
  • Permanent split capacitor design rated for 115/230VAC 60/50 HZ input
  • Rotation = Reversible
  • Keyed Shaft, Ball Bearings
  • One Year Manufacture Warranty.

Features: This worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation. Precision machined aluminum housings are used. Gearbox has ball bearings. The housing is sealed and lubrication is permanent with an oil bath. The output shaft is field interchangeable from left hand style to right hand style by reassembly. Optional conduit box # M1760021 & Optional base mount M1760006 available.

CM31P17NZ16A, M1125083.00
Suitable replacement for Baldor GC24306, Bodine 0490 - Please double check the specs to make sure it will work for your application

Some of the differences are but not limited to the following, please cross check your existing motor specs, shaft and mounting to make sure the replacement Leeson will interchange with your existing equipment
Baldor - Base mounting holes not 'Drop-in' replacement, Leeson is only a single shafted motor
