M1115020.00 Leeson Right Angle 1/17 hp, 125 RPM 90 Volts DC TENV Electric Gear Motor

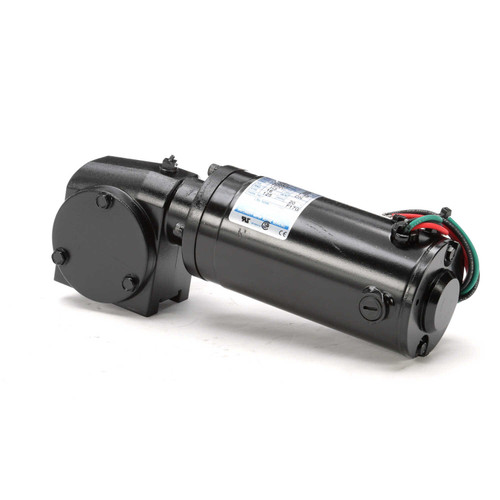

This Leeson right-angle gear motor delivers 1/17 horsepower at 125 RPM with a 90 V DC power supply. It is designed as a suitable replacement for Baldor GP233007 and Bodine 0096 motors, ideal for applications requiring reversible rotation and precise torque control.

Key Specifications

• Horsepower: 1/17 hp
• RPM: 125
• Voltage: 90 Volts DC
• Amperage: 0.85 amps
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This worm-type right-angle gear motor features a hardened steel worm and bronze worm wheel for durability and quiet operation. The precision-machined aluminum housing is sealed with an oil bath for permanent lubrication. The output shaft is keyed and field interchangeable between left- and right-hand configurations by reassembly.

Optional accessories include mounting base (#M1760006) and conduit box (#M1760000). It is compatible with Leeson speed controls 174307 and 174308. Note that the Leeson motor differs from Baldor and Bodine models in mounting hole patterns and voltage rating; verify shaft and mounting compatibility before replacement.

Cross Reference

• Baldor GP233007, Bodine 0096 - Please double check the specs to make sure it will work for your application
