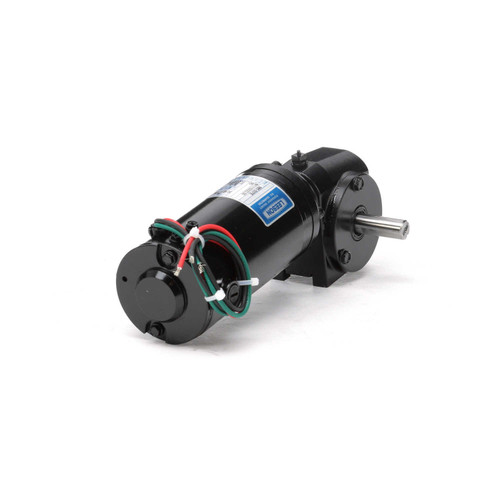

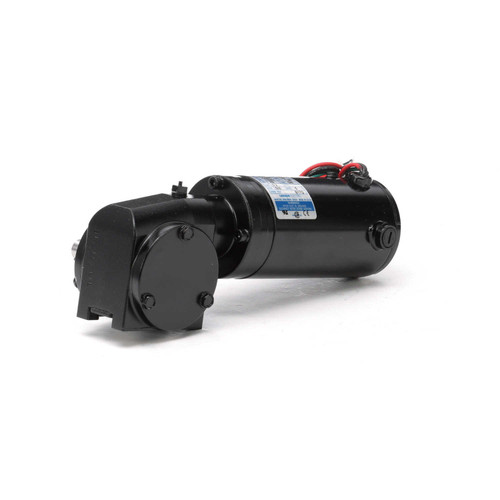

M1115022.00 Leeson | Right Angle 1/17 hp, 500 RPM 90 Volts DC TENV Electric Gear Motor

M1115022.00 Leeson Right Angle 1/17 hp, 500 RPM 90 Volts DC TENV Electric Gear Motor

This Leeson right-angle gear motor delivers reliable performance with a 1/17 horsepower DC motor designed for applications requiring low speed and precise torque. It is ideal for equipment needing reversible rotation and compact right-angle mounting.

Key Specifications

• Horsepower: 1/17 hp
• RPM: 500
• Voltage: 90 Volts DC
• Amperage: 1.0 amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)
• Shaft Dimensions: 1/2" diameter x 1.3" length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This worm-type right-angle gear motor features a hardened steel worm and bronze worm wheel for long life and quiet operation. The precision-machined aluminum housing is sealed with permanent oil bath lubrication and includes ball bearings for durability. The output shaft can be field-interchanged between left-hand and right-hand configurations by reassembly. Optional accessories include a mounting base (M1760006) and conduit box (M1760000). Compatible with Leeson speed controls 174307 and 174308.

Warranty

1 Year Manufacturer Warranty
