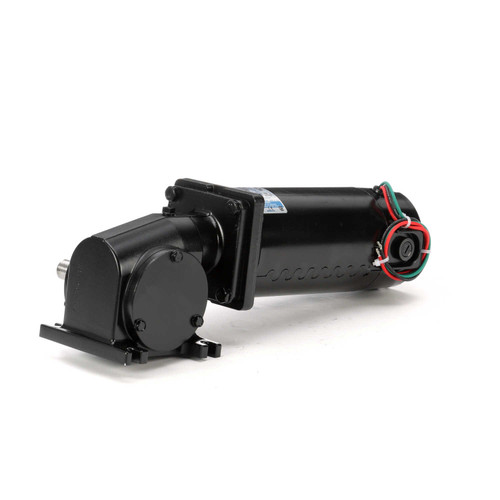

M1135065.00 Leeson | Right Angle 1/4 hp, 250 RPM 180 Volts DC TENV Electric Gear Motor

M1135065.00 Leeson Right Angle 1/4 hp, 250 RPM 180 Volts DC TENV Electric Gear Motor

This Leeson right-angle gear motor delivers 1/4 horsepower at 250 RPM, designed for applications requiring reliable, reversible DC power with a totally enclosed non-ventilated (TENV) housing. It is ideal for industrial machinery needing quiet operation and long service life.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 250
• Voltage: 180 Volts DC
• Amperage: 1.30 amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)
• Shaft Dimensions: 5/8" diameter x 1.8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This worm-type right-angle gear motor features a hardened steel worm and bronze worm wheel for durability and quiet operation. The precision-machined aluminum housing is sealed with permanent oil bath lubrication. The output shaft is field interchangeable between left- and right-hand styles by reassembly. Optional accessories include a mounting base (M1760006) and conduit box (M1760007). Compatible with Leeson speed controls models 174307 and 174308.

Warranty

1 Year Manufacturer Warranty
