M1135069.00 Leeson | Right Angle 1/8 hp, 42 RPM 90 Volts DC TENV Electric Gear Motor

M1135069.00 Leeson Right Angle 1/8 hp, 42 RPM 90 Volts DC TENV Electric Gear Motor

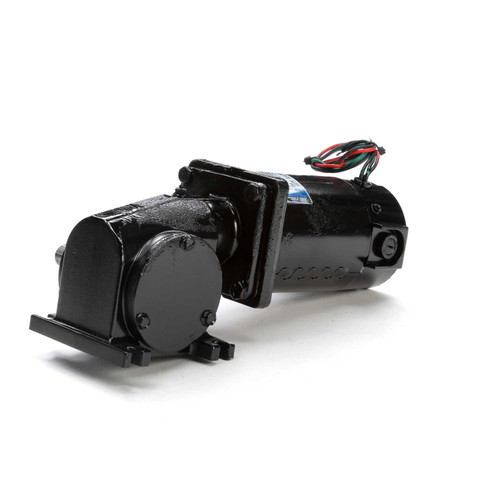

This Leeson right-angle gear motor delivers 1/8 horsepower at 42 RPM with a 90 V DC power supply. Designed as a suitable replacement for the Baldor GP7403 motor, it is ideal for applications requiring reliable, low-speed torque with reversible rotation.

Key Specifications

• Horsepower: 1/8 hp
• RPM: 42
• Voltage: 90 Volts DC
• Amperage: 1.40 amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)
• Shaft Dimensions: 5/8" diameter x 1.8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This worm-type right-angle gear motor features a hardened steel worm and bronze worm wheel for extended life and quiet operation. The precision-machined aluminum housing is sealed with permanent oil bath lubrication and includes ball bearings for smooth performance. The output shaft is field interchangeable between left- and right-hand configurations by reassembly.

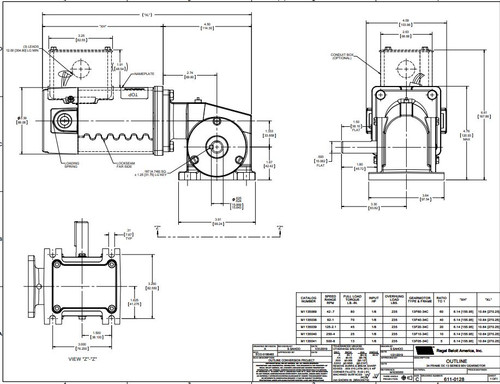

Optional accessories include a mounting base (part # M1760006) and a conduit box (part # M1760007). It is compatible with Leeson speed controls 174307 and 174308. Note that the Leeson motor shaft height is 1.67 inches and it has a single shaft design; base mounting holes differ from the Baldor GP7403 and are not a direct drop-in replacement, so verify shaft and mounting compatibility before installation.

Cross Reference

• Baldor GP7403 - Please double check the specs to make sure it will work for your application

Warranty

1 Year Manufacturer Warranty
