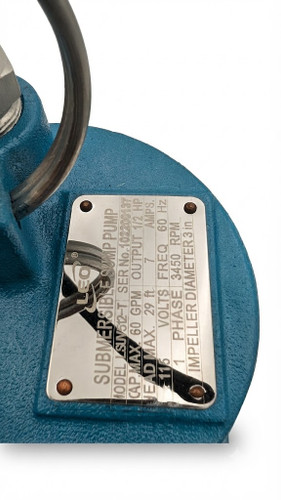

LEO LSUV512T Submersible Sump Pump - 1/2 HP, 68.17 GPM, 115V

LEO Pumps LSUV512T Submersible Sump Pump | 1/2 HP | 115V

The LEO Pumps LSUV512-T is a high-performance submersible sump pump engineered to deliver reliable dewatering performance for residential and commercial water transfer applications. Designed for maximum durability, it provides heavy-duty water evacuation for basements, crawlspaces, and low-lying drainage basins.

Key Specifications

• Model: LSUV512-T
• Maximum Horsepower: 1/2 HP
• Voltage: 115V
• Amperage: 7 A
• Discharge Flow @ 0 ft.: 4,090 GPH (68.17 GPM)
• Discharge Flow @ 10 ft.: 3,350 GPH (55.83 GPM)
• Discharge Flow @ 15 ft.: 45 GPM
• Maximum Vertical Lift: 31 ft.
• Maximum Pressure: 13.4 PSI
• Housing Material: Corrosion-Resistant Cast-Iron
• Impeller Material: Cast Iron
• Pump Switch Type: Tethered Float Switch (8–11 in. Switch-On Height)
• Outlet Diameter Connection: 1-1/2 in. FPT
• Cord Length: 10 ft.
• Minimum Sump Basin Diameter: 11 to 14 in.
• Operating Temperature Range: 32°F to 104°F
• Product Weight: 29.07 lb.

Product Features & Fitment

This submersible pump features a rugged cast-iron housing and a matching durable cast-iron impeller design, making it highly corrosion-resistant and suitable for demanding water evacuation jobs. The heavy-duty structural layout provides exceptional stability and isolates internal components during complete submersion, while the high-efficiency motor moves an impressive 4,090 gallons per hour at zero feet of head to manage rapid water influxes. It is equipped with an automatic tethered float switch that activates at a medium water level of 8 to 11 inches, offering drop-in convenience for pre-existing sumps. The compact unit easily accommodates standard sump basins ranging from 11 to 14 inches in diameter and mounts cleanly with a 1-1/2 inch FPT discharge line.
