C663 Century Liebert Condenser Motor 3/4 hp 1100 RPM 208-230/460V Century # C663

Century Liebert Condenser Motor 3/4 hp 1100 RPM 208-230/460V (SKU: C663)

This Century Liebert condenser motor is a reliable replacement motor designed for HVAC condenser units. It is compatible with various OEM references, providing efficient performance in cooling applications.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1100 RPM (60 Hz), 925 RPM (50 Hz)
• Voltage: 208-230/460V (60 Hz), 190/380V (50 Hz)
• Amperage: 4.8-4.2/2.1 amps (60 Hz)

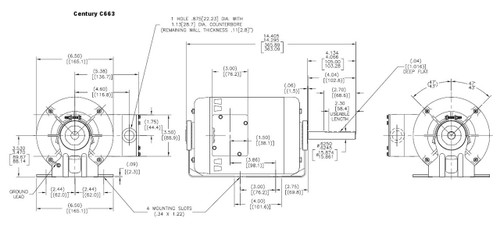

• Frame / Diameter: 6 1/2" diameter
• Shaft Dimensions: 5/8" diameter x 4" length
• Rotation: Counterclockwise (CCW) shaft end

Product Features & Fitment

The motor includes a 2-prong capacitor for easy installation and compatibility with existing HVAC systems. Its dimensions and rotation direction match common condenser motor requirements, making it a direct fit replacement for multiple OEM part numbers including Emerson/US Motor and Dayton models.

Cross Reference

• 8-184787-01, 193587, Emerson/US Motor # 2193, K63HXDFK-3912, K63HXFGK-5035, K63HXEBD-4498, K63HXEFY-4599, B-095D, KCP48TG181S, X259. Dayton 45GL99
