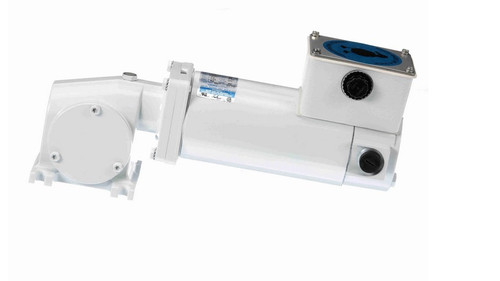

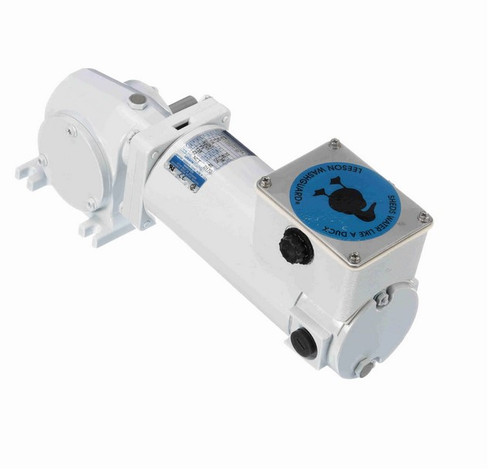

M1125277.00 Leeson 1/4 hp 62 RPM 90 VDC 32 Frame (Right Angle Rigid Base) TENV Wash-Down Gearmotor

M1125277.00 Leeson 1/4 hp 62 RPM 90 VDC 32 Frame (Right Angle Rigid Base) TENV Wash-Down Gearmotor

This Leeson gearmotor is a 1/4 horsepower, 62 RPM, 90 VDC unit designed for wash-down environments requiring slow speed and high torque. It is ideal for replacing similar right-angle rigid base gearmotors in industrial applications exposed to wet or misty conditions.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 62
• Voltage: 90 VDC
• Amperage: 3.7 amps
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA 32 Frame
• Shaft Dimensions: Keyed Shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The gearmotor features a rigid base mounting configuration suitable for stable installation. It includes Class F insulation and is designed for wash duty applications where moisture resistance is critical. Wiring diagrams are provided on the motor nameplate for ease of installation and maintenance.

Warranty

1 Year Manufacturer Warranty
