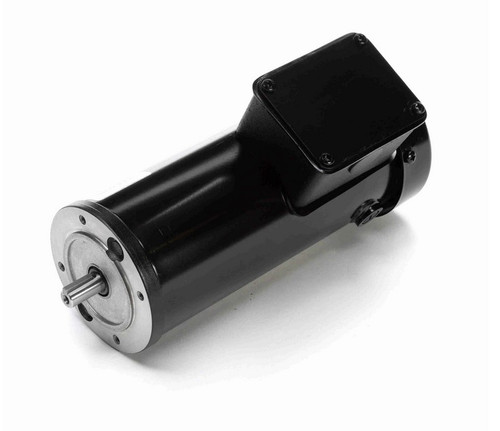

M1130139.00 Leeson 0.25 kW 1800 RPM 180VDC 63D Frame IP54 (No Base) TEFC Controllable DC Motor
M1130139.00 Leeson 0.25 kW 1800 RPM 180VDC 63D Frame IP54 (No Base) TEFC Controllable DC Motor
M1130139.00 Leeson 0.25 kW 1800 RPM 180VDC 63D Frame IP54 (No Base) TEFC Controllable DC Motor
M1130139.00 Leeson 0.25 kW 1800 RPM 180VDC 63D Frame IP54 (No Base) TEFC Controllable DC Motor
M1130139.00 Leeson 0.25 kW 1800 RPM 180VDC 63D Frame IP54 (No Base) TEFC Controllable DC Motor
M1130139.00 Leeson 0.25 kW 1800 RPM 180VDC 63D Frame IP54 (No Base) TEFC Controllable DC Motor

Leeson

M1130139.00 Leeson 0.25 kW 1800 RPM 180VDC 63D Frame IP54 (No Base) TEFC Controllable DC Motor

(No reviews) Write a Review
$571.55
$484.38
SKU M1130139.00
UPC 6.92E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM

CURRENTLY OUT OF STOCK

Description
  • 0.25 kW 1800 RPM, 1.7 amps 180 Volt Controllable DC Motor
  • IEC 63D Frame, IP54 Enclosure, Shaft 7/16" Diameter x 7/8"
  • Service Factor: 1.0 Overload Protection = None
  • No Base, Reversible, Ball Bearings, Class H Insulation
  • 1 Year Manufacture Warranty

DC motor designed for use with SCR (Silicon Controlled Rectifier) motor controllers. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. M1130139.00
