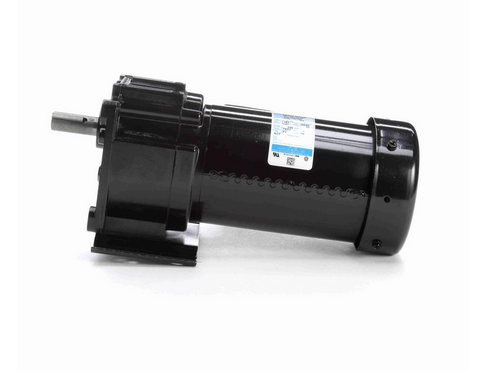

M1145123.00 Leeson 1/6 hp 30 RPM 190 VAC 38 Frame (No Base) TEFC 3-Phase AC Controllable Gearmotor

M1145123.00 Leeson 1/6 hp 30 RPM 190 VAC 38 Frame (No Base) TEFC 3-Phase AC Controllable Gearmotor

This Leeson 3-phase AC controllable gearmotor delivers 1/6 horsepower at 30 RPM, designed for applications requiring precise speed control via inverter controllers. It replaces standard gearmotors in industrial settings where a totally-enclosed fan-cooled (TEFC) design and reversible operation are essential.

Key Specifications

• Horsepower: 1/6 hp
• RPM: 30
• Voltage: 190 VAC
• Amperage: 0.72 amps
• Enclosure: Totally-Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 38 Frame
• Shaft Dimensions: 1/2" Diameter x 1" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This gearmotor features a parallel shaft design and is intended for use with inverter controllers, with the wiring diagram conveniently located on the motor nameplate. It comes without a base, requiring direct mounting, and includes Class F insulation for enhanced thermal protection. The motor is built with a service factor of 1.0 and does not include overload protection.

Warranty

1 Year Manufacturer Warranty
