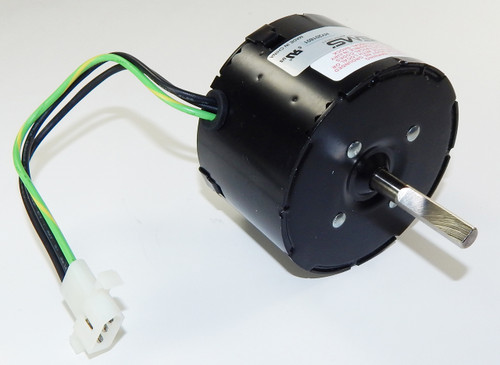

7163-9676 Aftermarket Marley 1/100 hp 1550 RPM CW 3.3" Diameter 115 Volts Motor
This aftermarket replacement motor is designed for Marley and Fasco applications, providing reliable performance for HVAC and bath fan systems. It serves as a direct substitute for various Marley and Fasco motor models, ensuring compatibility and ease of maintenance.
Key Specifications
- Horsepower: 1/100 hp
- RPM: 1550
- Voltage: 115 Volts
- Amperage: 0.58 Amps
- Frame / Diameter: 3.3" Diameter
- Shaft Dimensions: 5/16" diameter x 1 1/2" length
- Rotation: Clockwise (CWSE)
Product Features & Fitment
The motor features two studs on the back for secure mounting and has a motor length (excluding shaft) of 2 1/8". It is a suggested replacement for multiple Fasco and Marley motor models, including Fasco 7163-9322, 7163-2593, 7163-9678, and Marley 7163-9677, 7163-9676, among others. This motor is also compatible with Marley motors used in Berko bath fan model 765 and replaces Fasco D1160.
Cross Reference
- Fasco 7163-9322, 7163-2593, 7163-9678; 663, 668, 763, 768, 661, 7701C
- Marley 7163-9677, 7163-9676, 71639676, 7163-7368, JA2C523, JA2C523N
- Marley Motor for Berko bath fan 765
- Replaces Fasco D1160
Warranty
1 Year Manufacturer Warranty
