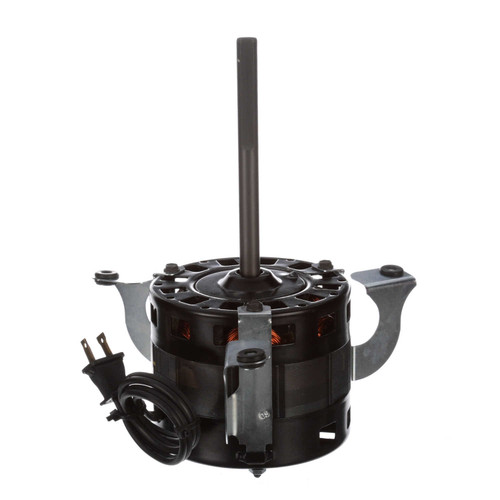

OML6433 Century Miller / LSI / Home Furnace Motor 1/5 hp 1050 RPM 115V Century # OML6433

OML6433 Century Miller / LSI / Home Furnace Motor 1/5 hp 1050 RPM 115V

This 1/5 horsepower furnace motor is designed for home heating applications and serves as a reliable replacement for various Century, Miller, and LSI models. It is compatible with multiple part numbers including 326P155, 7152-0020, Fasco D1082, DAF103N, 10815, and Dayton 48Y008.

Key Specifications

• Horsepower: 1/5 hp
• RPM: 1050
• Voltage: 115V
• Amperage: 4.0 amps
• Frame / Diameter: 5"
• Shaft Dimensions: 1/2" x 5 7/8"
• Rotation: Clockwise (CW) Shaft End
• Bearings: Sleeve Bearings

Product Features & Fitment

The motor features a 1-speed operation with a motor case length of 3 7/8" and an 8.26" bolt circle for mounting. It includes a 20" lead wire with a molded plug for easy electrical connection. The clockwise shaft rotation and sleeve bearing construction ensure smooth and reliable performance in home furnace systems.

Cross Reference

• 326P155, 7152-0020, Fasco D1082, DAF103N, 10815, Dayton 48Y008

Warranty

1 Year Manufacturer Warranty
