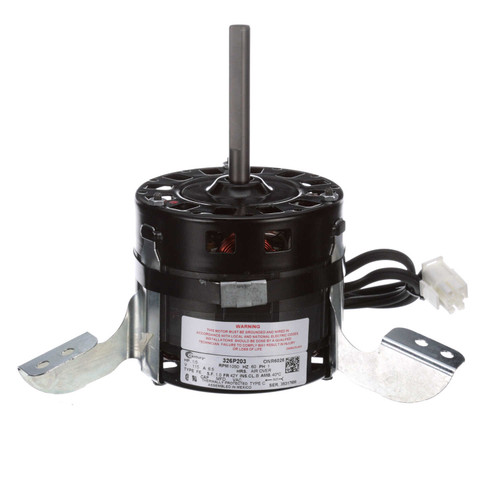

ONR6026 Century Nordyne (326P203) Furnace Motor 1/5 hp 1050 RPM 115V Century # ONR6026

ONR6026 Century Nordyne (326P203) Furnace Motor 1/5 hp 1050 RPM 115V

This Century furnace motor is a direct replacement for models including 326P203, 6210810, Dayton 4MB32, and Century 942. Designed for reliable operation in residential heating systems, it delivers consistent performance at 1/5 horsepower and 1050 RPM.

Key Specifications

• Horsepower: 1/5 hp
• RPM: 1050
• Voltage: 115V
• Amperage: 6.5 amps
• Frame / Diameter: 5" motor diameter
• Shaft Dimensions: 1/2" x 3 3/4"
• Rotation: Clockwise (CW) shaft end
• Bearings: Sleeve bearings

Product Features & Fitment

The motor features a 1-speed design with a motor case length of 4 1/8". It includes 17" leads for electrical connections and mounts using two holes per bracket on 9" and 10.18" bolt circles. This configuration ensures compatibility with a variety of furnace models for straightforward installation.

Cross Reference

• 326P203, 6210810, Dayton 4MB32, Century 942

Warranty

1 Year Manufacturer Warranty
