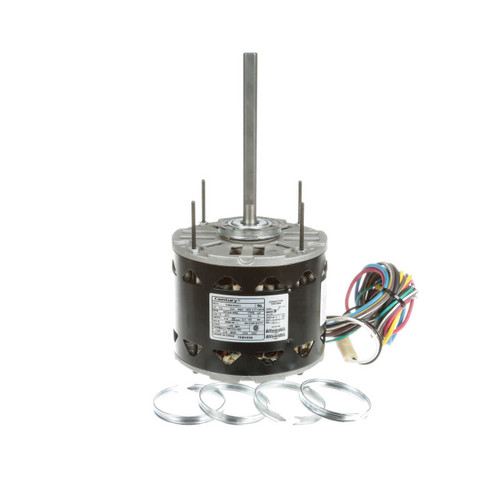

Model 7FD1036 Century 1/3 hp 1075 RPM 3-Speed 277 Volts 5.6" Diameter Century Furnace Motor # 7FD1036

Model 7FD1036 Century 1/3 hp 1075 RPM 3-Speed Furnace Motor

This Century direct drive furnace blower motor is designed for reliable HVAC operation and replaces Fasco D972 models. It is ideal for use in furnace blower applications requiring a 3-speed motor with reversible rotation.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1075
• Voltage: 277 Volts
• Amperage: 1.9 Amps
• Frame / Diameter: 5.6" Diameter
• Shaft Dimensions: 1/2" x 6.44"
• Rotation: Reversible
• Bearings: Sleeve bearings

Product Features & Fitment

This motor supports both belly band and stud mounting configurations with a bolt circle of 5.2". It requires a 7.5 MFD 370V capacitor, which is included. The motor is thermally protected, UL recognized, CSA certified, and features an open ventilated, air-over design suitable for 277 Volt applications only.

Cross Reference

• Fasco D972

Warranty

1 Year Manufacturer Warranty
