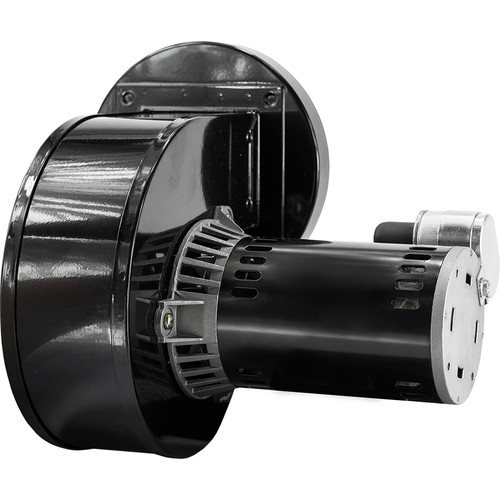

Modine 5H0735980002 Aftermarket Replacement Power Vent Blower, 208-230 Volts
Modine 5H0735980002 Aftermarket Replacement Power Vent Blower, 208-230 Volts
This aftermarket replacement power vent blower is designed to directly replace the Modine 5H0735980002 model. It is ideal for HVAC applications requiring reliable and efficient ventilation with a compatible fit for top brand Modine units.
Key Specifications
- Horsepower: 1/15 hp
- RPM: 3000
- Voltage: 208-230 Volts, 50/60 Hz
- Amperage: 0.40 amps
- Frame / Diameter: 3.3" Diameter Motor
- Bearings: Ball Bearings
Product Features & Fitment
This blower features a new PSC design for improved energy efficiency and is thermally protected for enhanced durability. It includes two power lead connections approximately 84 inches in length and a 6-1/8 inch round outlet. Installation is straightforward, as the unit is made to precisely fit Modine equipment. A 2 MFD/370 VAC capacitor is required and included for operation.
Suggested replacement for Modine models 5H73598-2 and 25M55D1, as well as Fasco models 70219115, 7021-9115, 7021-12416, and Rotom FB-RFB598.
Cross Reference
- the following models
Warranty
1 Year Manufacturer Warranty
| Voltage | 208/230V |
|---|---|
| Horsepower | 1/15 HP |
| RPM | 3000 |
| Hertz | 50/60 Hz |
| Type | PSC (Permanent Split Capacitor) |
| Amperage | 0.40 Amps |
| Bearings | Ball Bearings |
the following models
