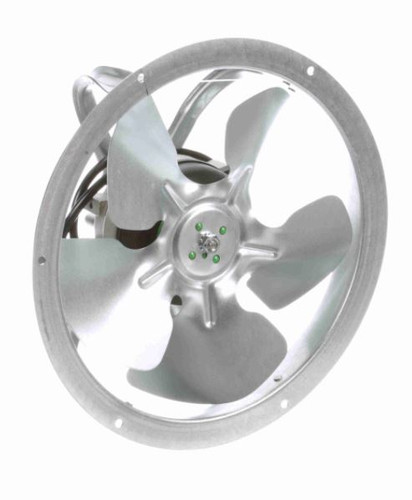

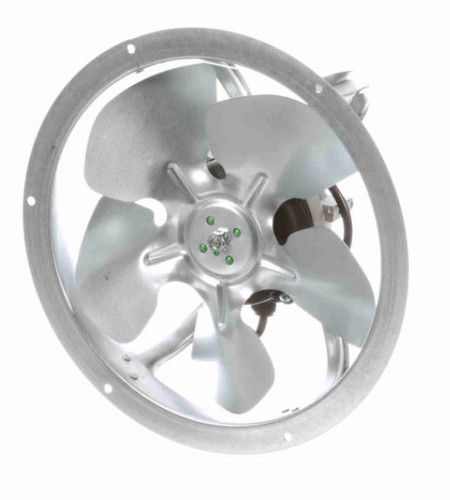

Morrill Motors MD5469, 4-20 Watt, 115-230V ECM Evaporator Fan Assembly

Morrill Motors MD5469, 4-20 Watt, 115-230V ECM Evaporator Fan Assembly

The Morrill Motors MD5469 is a dual-voltage, drop-in replacement evaporator fan assembly designed for commercial refrigeration applications. It replaces models 5R024 and 5R033 and is ideal for use in evaporators, condensers, walk-in coolers, and freezers.

Key Specifications

• Wattage: 4-20 Watts
• RPM: 1550
• Voltage: 115-230 VAC (Automatic, allowable range 90-240 VAC)
• Amperage: 0.20-0.55 Amps
• Enclosure: Totally Enclosed Air-Over, IP66/IP67 Protection

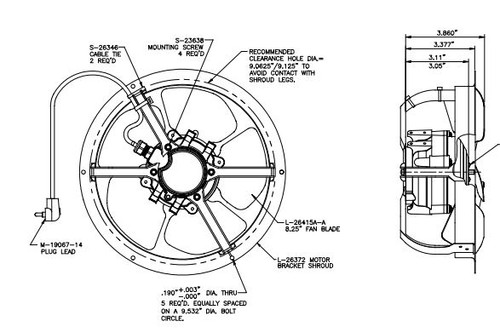

• Frame / Diameter: Aluminum frame, 9.532" diameter bolt circle
• Rotation: CWLE (Clockwise Looking at End)
• Bearings: Ball Bearings

Product Features & Fitment

This fan assembly features an 8.25" fan blade and includes a mounting bracket and moisture shield for secure installation. It utilizes energy-efficient ECM technology with up to 68% efficiency and is rated for continuous operation up to 83,720 hours. The unit is equipped with electronic thermal protection and a 2-prong right-angle plug, supporting all-angle mounting and operation in temperatures ranging from -40°C to 55°C.

Cross Reference

• 5R024, 5R033 Fan Packs
