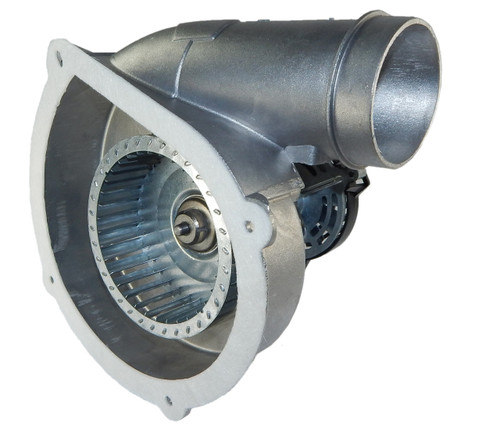

N066 | Rheem Ruud Weather King, RGP Mid Efficiency, Conquest 800 Furnace Draft Inducer

N066 | Rheem Ruud Weather King, RGP Mid Efficiency, Conquest 800 Furnace Draft Inducer

This furnace draft inducer blower is designed as a direct replacement for Rheem, Ruud, Weather King RGP Mid Efficiency, and Conquest 800 models. It ensures reliable flue exhaust performance in residential HVAC furnace systems.

Key Specifications

• Horsepower: 1/30 hp
• RPM: 3000
• Voltage: 115 Volts
• Amperage: 1.6 amps
• Enclosure: Metal Housing
• Bearings: Ball Bearings

Product Features & Fitment

The unit features a shaded pole motor with a single-speed operation and includes a gasket for proper sealing. It has a provision for attaching a vacuum hose. This draft inducer does not come with a sensor mounted; if required, the sensor must be transferred from the existing unit as there is no dedicated mounting location for a sensor on this model. Suggested replacement references include multiple OEM part numbers from Rheem, Ruud, Weather King, Amtek, and Fasco.

Cross Reference

• Rheem Ruud Weather King RGP Mid Efficiency, Conquest 800. 70-24157-03, 70-22838-02, J238-150-1533, J238-150-15165, 70-101087-01, 70-24178-01, 70-24175-01, 70-24175-81, 7021-11559, 70-24157-03, 70-22838-02, 70-22838-82, Amtek 117104-01, 117104-04, 117847-07, 66847, 66838, 117847-00, 119243-000, 7058-1406, 00-81R02QJAA, 70-24121-03, 70-24151-83, 117104-05 Fasco A066, FB-RFB241
