sale
Marathon

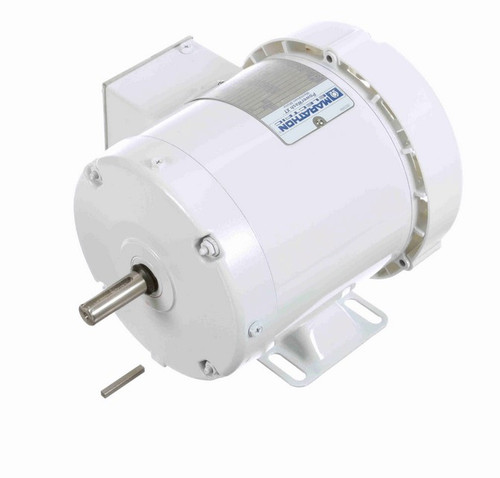

N322 Marathon 1/2 hp 1800 RPM 208-230/460V 3-Phase 56 Frame TEFC (rigid base) Washdown Motor
(No reviews)
Write a Review
Write a Review
Marathon
N322 Marathon 1/2 hp 1800 RPM 208-230/460V 3-Phase 56 Frame TEFC (rigid base) Washdown Motor
$349.60
$224.48
SKU
MN322
UPC
7.23E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
208/230/460V
Horsepower
1/2 HP
RPM
1800
Phase
Three Phase
Frame
56
Enclosure
TEFC
Hertz
60 Hz
Amperage
2.0/1.0 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
- 1/2 hp 1800 RPM, 1.9-2.0/1.0 amps 208-230/460 Volts 60hz. Three Phase
- NEMA 56 frame, Stainless Steel Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.15, Overload protection = None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty
Wash-down motors are use in applications exposed to fresh water washings. This is a single phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 056T17W5344
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 208/230/460V |
| Horsepower | 1/2 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 56 |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 2.0/1.0 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
