NA1056 Nidec 1/2 hp 1075 RPM 208-230V 5.6" Dia. (No Base) 3-Speed ODP Fan Motor

NA1056 Nidec 1/2 hp 1075 RPM 208-230V 5.6" Dia. (No Base) 3-Speed ODP Fan Motor

This Nidec 1/2 horsepower, 3-speed open drip proof (ODP) fan motor is designed for direct drive applications in central HVAC systems. It replaces standard 5.6" diameter motors and is suitable for 208-230V power supplies operating at 60 Hz.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 3.37 amps
• Enclosure: Open Air-Over (OAO)
• Frame / Diameter: 5.6" Diameter Rolled Steel Frame
• Shaft Dimensions: Flat Shaft 8 1/2" x 1/2" x 8 1/2"
• Rotation: Counterclockwise (CCW) Lead End
• Bearings: Sleeve Bearings

Product Features & Fitment

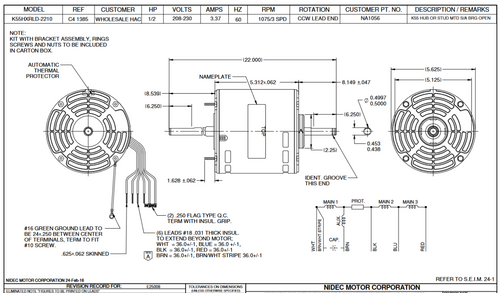

This motor features a hub mount design with a flat shaft and sleeve bearings for reliable operation. It includes overload protection with an automatic reset and Class B insulation for durability. The wiring diagram is conveniently located on the motor nameplate to assist with installation.

Warranty

1 Year Manufacturer Warranty
