NO100P2BG Nidec 100 hp WPI 1800 RPM 230/460V 3-phase 404VPZ Frame TEFC Vertical Solid Shaft Motor
NO100P2BG Nidec 100 hp WPI 1800 RPM 230/460V 3-phase 404VPZ Frame TEFC Vertical Solid Shaft Motor
NO100P2BG Nidec 100 hp WPI 1800 RPM 230/460V 3-phase 404VPZ Frame TEFC Vertical Solid Shaft Motor
NO100P2BG Nidec 100 hp WPI 1800 RPM 230/460V 3-phase 404VPZ Frame TEFC Vertical Solid Shaft Motor

Nidec

NO100P2BG Nidec 100 hp WPI 1800 RPM 230/460V 3-phase 404VPZ Frame TEFC Vertical Solid Shaft Motor

(No reviews) Write a Review
$12,975.45
$11,584.76
SKU NO100P2BG
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 100 HP
RPM 1800
Phase Three Phase
Frame 404VPZ
Enclosure TEFC
Hertz 60 Hz
Amperage 227/114 Amps
Bearings Ball Bearings
Insulation Class Class F
Duty Inverter Duty
Adding to cart… The item has been added
Description
  • 100 HP 1800 RPM, 227/114 amps, 230/460V 60 Hz. 3 Phase

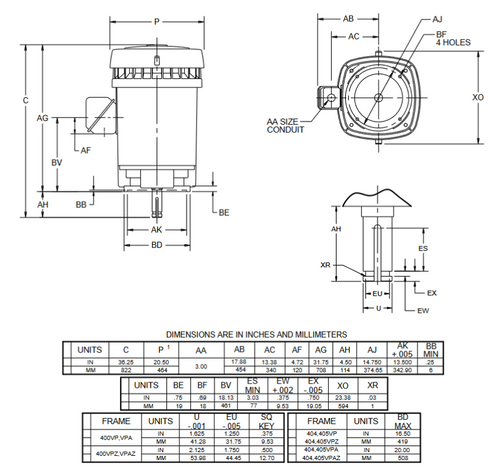

  • NEMA 404VPZ Frame, RVS type, 16 1/2" Dia. Base, TEFC
  • 1.15 Service Factor, Class F insulation, Thermal Protection: None
  • Non-Reversible Ratchet Rotation, Weather Protected Enclosure
  • P-Base Mounting, Ball Bearings, Normal Thrust


Vertical pump motor for use on turbine, mix flow, and propeller pumps. TEFC = Totally-Enclosed Fan-Cooled, All cast iron construction, Inverter Duty. 1 Year Manufacture Warranty. FK23

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 100 HP
RPM 1800
Phase Three Phase
Frame 404VPZ
Enclosure TEFC
Hertz 60 Hz
Amperage 227/114 Amps
Bearings Ball Bearings
Insulation Class Class F
Duty Inverter Duty
!
