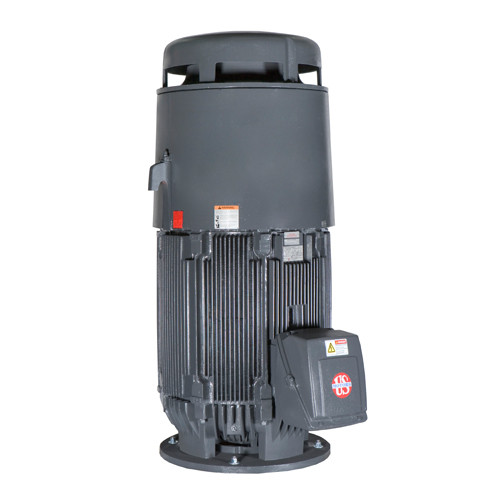

NO25P2BE Nidec 25 hp WPI 1800 RPM 230/460V 3-phase 284VPZ Frame TEFC Vertical Solid Shaft Motor

NO25P2BE Nidec 25 hp WPI 1800 RPM 230/460V 3-phase 284VPZ Frame TEFC Vertical Solid Shaft Motor

SKU:
NO25P2BE
Weight:
305.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $4,678.00
Now: $4,176.70
Adding to cart… The item has been added
  • 25 HP 1800 RPM, 60.0/29.8 amps, 230/460V 60 Hz. 3 Phase
  • NEMA 284VPZ Frame, AVS type, 10" Dia. Base, TEFC
  • 1.15 Service Factor, Class F insulation, Thermal Protection: None
  • Non-Reversible Ratchet Rotation, Weather Protected Enclosure
  • P-Base Mounting, Ball Bearings, Normal Thrust


Vertical pump motor for use on turbine, mix flow, and propeller pumps. TEFC = Totally-Enclosed Fan-Cooled, All cast iron construction, Inverter Duty. 1 Year Manufacture Warranty. HA10

!
