NP0012 TECO-Westinghouse 1 hp 3600 RPM 143T 230/460V TEFC Severe Duty 3-Ph Motor

NP0012 TECO-Westinghouse 1 hp 3600 RPM 143T 230/460V TEFC Severe Duty 3-Ph Motor

This TECO-Westinghouse NEMA Premium electric motor is designed for severe duty industrial applications requiring reliable performance. It replaces standard motors with a robust 1 hp, 3-phase design suitable for a variety of heavy-duty equipment.

Key Specifications

• Horsepower: 1 hp
• RPM: 3600
• Voltage: 230/460 V
• Amperage: 2.68/1.34 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC), IP56

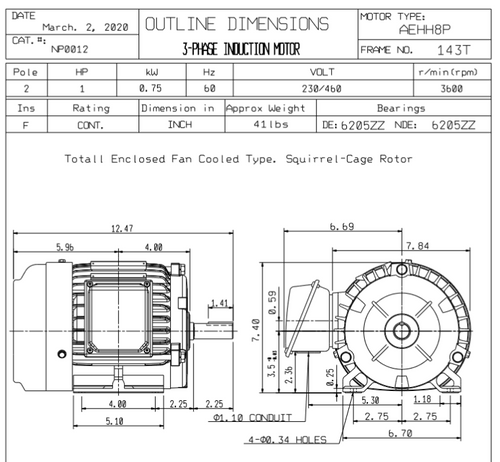

• Frame / Diameter: NEMA 143T Frame
• Shaft Dimensions: 2 1/4" length x 7/8" diameter, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

Constructed with a cast iron frame and rigid base, this motor offers durability and stability in demanding environments. It features Class F insulation and is suitable for inverter use with a variable torque speed range of 20:1 and constant torque speed range of 10:1, complying with NEMA MG-1 Part 31.4.4.2. The motor is UL recognized, CSA approved, and CE marked, ensuring compliance with industry standards.

Warranty

1 Year Manufacturer Warranty
