NP0026C TECO-Westinghouse 2 hp 1200 RPM 184TC 230/460V TEFC Severe Duty Petro-Chem 3-Ph Motor
NP0026C TECO-Westinghouse 2 hp 1200 RPM 184TC 230/460V TEFC Severe Duty Petro-Chem 3-Ph Motor
NP0026C TECO-Westinghouse 2 hp 1200 RPM 184TC 230/460V TEFC Severe Duty Petro-Chem 3-Ph Motor
NP0026C TECO-Westinghouse 2 hp 1200 RPM 184TC 230/460V TEFC Severe Duty Petro-Chem 3-Ph Motor

TECO WESTINGHOUSE

NP0026C TECO-Westinghouse 2 hp 1200 RPM 184TC 230/460V TEFC Severe Duty Petro-Chem 3-Ph Motor

(No reviews) Write a Review
$523.84
SKU NP0026C
Shipping Calculated at Checkout
Voltage 230/460V
Horsepower 2 HP
RPM 1200
Phase Three Phase
Frame 184TC
Enclosure TEFC
Hertz 60 Hz
Amperage 6.00/3.00 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Severe Duty
Adding to cart… The item has been added
Description

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 2 hp 1200 RPM, 6.00/3.00 amps 230/460 Volts 60 Hz. Three Phase

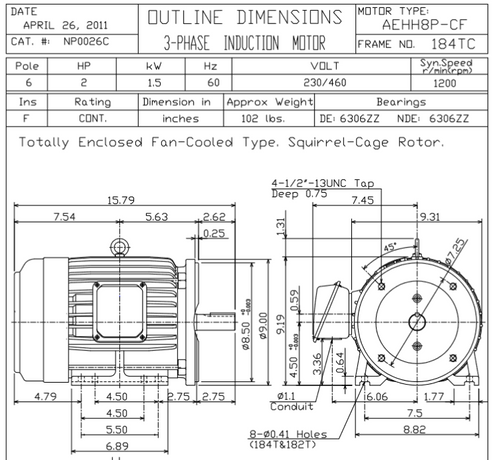

  • NEMA 184TC Frame, 2 5/8 x 1 1/8" Dia. Keyed Shaft
  • Cast Iron Frame, Totally Enclosed Fan Cooled (IP56)
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

For use in Severe Duty Applications Having Explosive Gases. Certified for Class 1, Division 2, Groups B,C,D

Specifications
Voltage 230/460V
Horsepower 2 HP
RPM 1200
Phase Three Phase
Frame 184TC
Enclosure TEFC
Hertz 60 Hz
Amperage 6.00/3.00 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Severe Duty
!
