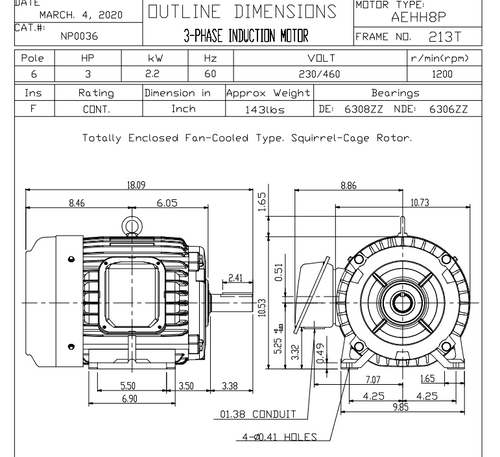

NP0036 TECO Westinghouse 3 hp 1200 RPM 213T Frame 230/460V TEFC 3-Phase Motor

NP0036 TECO Westinghouse 3 hp 1200 RPM 213T Frame 230/460V TEFC 3-Phase Motor

The NP0036 TECO Westinghouse motor is a severe duty, NEMA Premium electric motor designed for industrial applications such as fans, blowers, pumps, crushers, compressors, mixers, and conveyors. It serves as a reliable replacement motor offering robust performance and compatibility with inverter drives.

Key Specifications

• Horsepower: 3 hp
• RPM: 1200
• Voltage: 230/460 V
• Amperage: 8.04/4.02 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC), IP54
• Frame / Diameter: NEMA 213T
• Shaft Dimensions: Keyed shaft, 1 3/8" diameter x 3 3/8" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

Constructed with a cast iron frame and rigid base, this motor is built for severe duty environments. It features Class F insulation and is suitable for inverter use in accordance with NEMA MG-1 Part 31.4.4.2 standards, supporting a variable torque speed range of 20:1 and constant torque range of 10:1. The motor is UL Recognized, CSA Approved, and CE Marked, ensuring compliance with industry safety standards.

Warranty

1 Year Manufacturer Warranty
