NP0054G TECO-Westinghouse 5 hp 1800 RPM 184T 230/460V TEFC Severe Duty SGR 3-Ph Motor
This TECO-Westinghouse NEMA Premium electric motor delivers reliable 5 hp power at 1800 RPM, designed for severe duty industrial applications. It is a direct replacement motor suitable for three-phase 230/460V systems, providing efficient performance in demanding environments.
Key Specifications
- Horsepower: 5 hp
- RPM: 1800
- Voltage: 230/460 V
- Amperage: 12.24/6.12 A
- Enclosure: Totally Enclosed Fan Cooled (TEFC), IP56

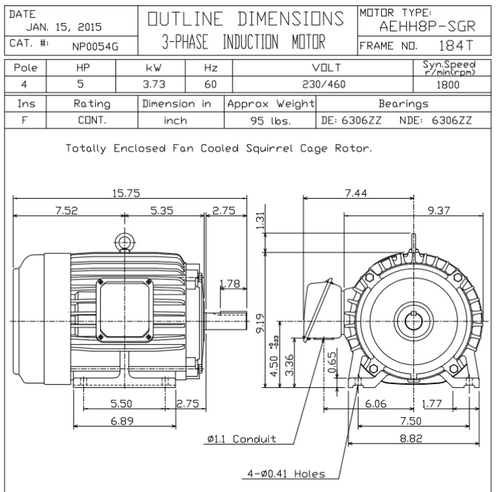

- Frame / Diameter: NEMA 184T Frame
- Shaft Dimensions: 2 1/4" length x 7/8" diameter, keyed
- Bearings: Ball Bearings
Product Features & Fitment
Constructed with a cast iron frame and rigid base, this motor is reversible and designed for inverter duty use, supporting variable torque speed ranges of 20:1 and constant torque ranges of 10:1 per NEMA MG-1 Part 31.4.4.2. It includes an SGR bearing protection ring to divert harmful voltages from the bearings, making it suitable for electrically risky environments. The motor is UL recognized, CSA approved, and CE marked for safety and compliance.
Warranty
1 Year Manufacturer Warranty
