NP0102C TECO Westinghouse 10 hp 3600 RPM 215TC Frame 230/460V TEFC 3-Phase Motor

NP0102C TECO Westinghouse 10 hp 3600 RPM 215TC Frame 230/460V TEFC 3-Phase Motor

The NP0102C is a TECO Westinghouse severe duty, NEMA Premium electric motor designed for industrial applications such as fans, blowers, pumps, crushers, compressors, mixers, and conveyors. It replaces standard motors requiring a robust, energy-efficient solution with inverter duty capability.

Key Specifications

• Horsepower: 10 hp
• RPM: 3600
• Voltage: 230/460 V
• Amperage: 23.0/11.5 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC), IP54

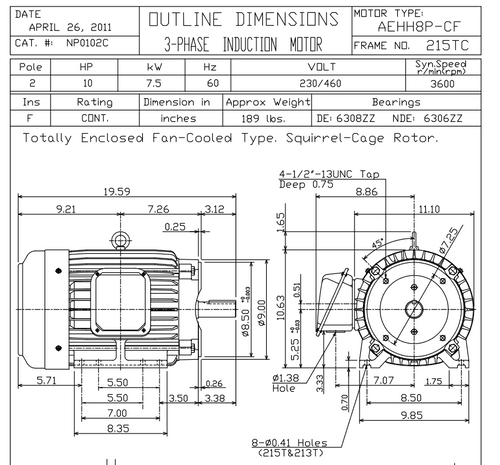

• Frame / Diameter: NEMA 215TC Frame
• Shaft Dimensions: Keyed shaft, 1 3/8" diameter x 3 3/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

Constructed with a cast iron rigid base, this motor is built for severe duty environments and is suitable for inverter use per NEMA MG-1 Part 31.4.4.2, supporting variable torque (20:1) and constant torque (10:1) speed ranges. It features Class F insulation and does not include thermal overload protection. The motor is UL recognized, CSA approved, and CE marked for safety and compliance.

Warranty

1 Year Manufacturer Warranty
