NP0104 TECO-Westinghouse 10 hp 1800 RPM 215T 230/460V TEFC Severe Duty 3-Ph Motor

NP0104 TECO-Westinghouse 10 hp 1800 RPM 215T 230/460V TEFC Severe Duty 3-Ph Motor

The TECO-Westinghouse NP0104 is a general-purpose, severe duty electric motor designed for industrial applications requiring reliable performance and durability. It is suitable for replacing similar 10 hp motors in demanding environments.

Key Specifications

• Horsepower: 10 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 24.6/12.3 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC), IP56

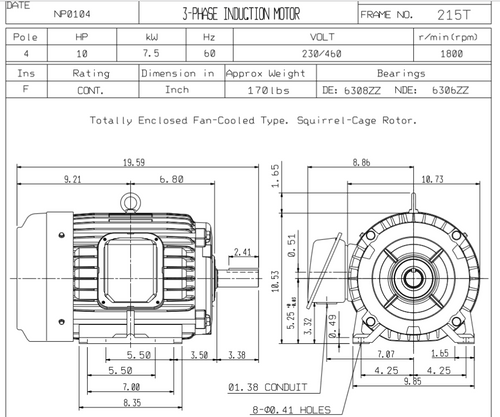

• Frame / Diameter: NEMA 215T Frame
• Shaft Dimensions: 3 3/8" length x 1 3/8" diameter, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a cast iron frame with a rigid base for stable mounting and long service life. It is designed with Class F insulation and is suitable for inverter use, supporting variable torque speed ranges of 20:1 and constant torque ranges of 10:1 per NEMA MG-1 Part 31.4.4.2. The motor is UL recognized, CSA approved, and CE marked, ensuring compliance with industry standards. Thermal overload protection is not included.

Warranty

1 Year Manufacturer Warranty
