NPV0154C TECO-Westinghouse 15 HP 1800 RPM 254TC 230/460V TEFC Vertical Severe Duty 3-Ph Motor

NPV0154C TECO-Westinghouse 15 HP 1800 RPM 254TC 230/460V TEFC Vertical Severe Duty 3-Ph Motor

The NPV0154C is a TECO-Westinghouse severe duty electric motor designed for demanding industrial applications, including environments with explosive gases. It serves as a reliable replacement motor with a vertical mount and is suitable for three-phase power systems.

Key Specifications

• Horsepower: 15 HP
• RPM: 1800
• Voltage: 230/460V
• Amperage: 34.5/17.3 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC), IP56

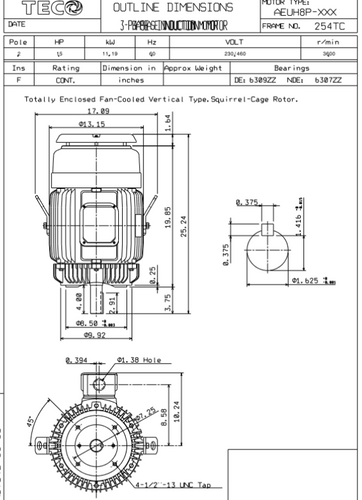

• Frame / Diameter: NEMA 254TC Frame
• Shaft Dimensions: 3 1/8" x 1 3/8" Diameter, Keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

Constructed with a cast iron frame, this motor is rated for severe duty and certified for Class 1, Division 2, Groups B, C, and D hazardous locations. It features a C-face mounting and is suitable for inverter duty applications, supporting variable torque speed ranges up to 20:1 and constant torque up to 10:1 per NEMA MG-1 Part 31.4.4.2. The motor includes Class F insulation and a service factor of 1.15 but does not include thermal overload protection.

Warranty

1 Year Manufacturer Warranty
