NPV0304C TECO-Westinghouse 30 HP 1800 RPM 286TC 230/460V TEFC Vertical Severe Duty 3-Ph Motor

NPV0304C TECO-Westinghouse 30 HP 1800 RPM 286TC 230/460V TEFC Vertical Severe Duty 3-Ph Motor

The NPV0304C is a TECO-Westinghouse premium NEMA electric motor designed for severe duty industrial applications, including environments with explosive gases. It serves as a reliable replacement motor offering high performance and durability in demanding settings.

Key Specifications

• Horsepower: 30 HP
• RPM: 1800
• Voltage: 230/460V
• Amperage: 68.6/34.3 Amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC), IP56

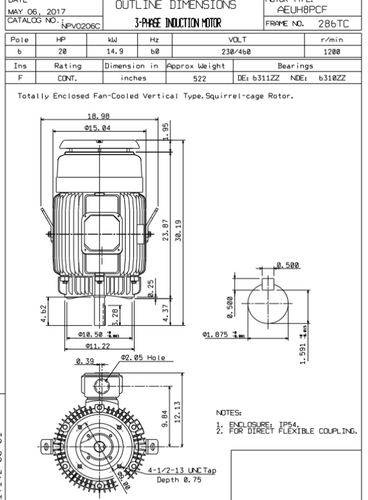

• Frame / Diameter: NEMA 286TC Frame
• Shaft Dimensions: 4 3/8" length x 1 7/8" diameter, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

Constructed with a cast iron frame, this motor is built to withstand severe duty conditions and is certified for use in Class 1, Division 2, Groups B, C, and D hazardous locations. It features a C-face mounting and is suitable for inverter duty applications with a speed range of 20:1 for variable torque and 10:1 for constant torque, complying with NEMA MG-1 Part 31.4.4.2 standards. The motor includes Class F insulation and a service factor of 1.15 but does not have built-in thermal overload protection.

Warranty

1 Year Manufacturer Warranty
