O601 Marathon 1/6 hp (1 speed) 115V 1800 RPM TENV 48NZ Frame Split Phase Oil Burner Motor

O601 Marathon 1/6 hp (1 speed) 115V 1800 RPM TENV 48NZ Frame Split Phase Oil Burner Motor

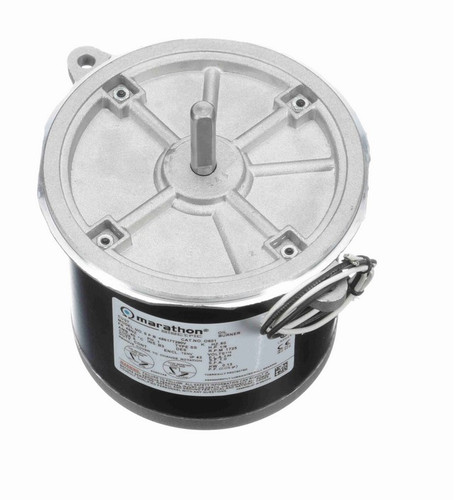

The O601 Marathon motor is a 1/6 horsepower, single-speed motor designed as a direct replacement for oil burner furnace applications. It features a totally enclosed non-ventilated (TENV) design suitable for reliable operation in oil burner mounts.

Key Specifications

• Horsepower: 1/6 hp
• RPM: 1725
• Voltage: 115 V, 60 Hz
• Amperage: 3.0 A
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA 48NZ Frame

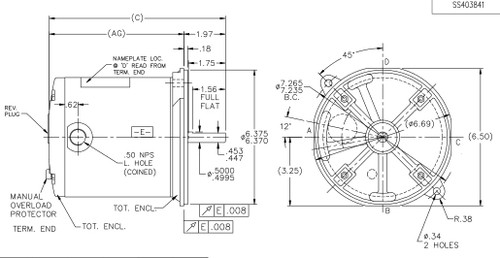

• Shaft Dimensions: 2" length x 1/2" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This split phase motor includes manual thermal protection and a service factor of 1.0. It is designed for easy installation in oil burner mounts and is compatible with existing furnace motor setups requiring a NEMA 48NZ frame. The motor’s reversible rotation and durable ball bearings ensure versatile and long-lasting performance.

Cross Reference

• motors in oil burning furnaces. TENV = Totally Enclosed Non-Ventilated 048S17T290

Warranty

1 Year Manufacturer Warranty
