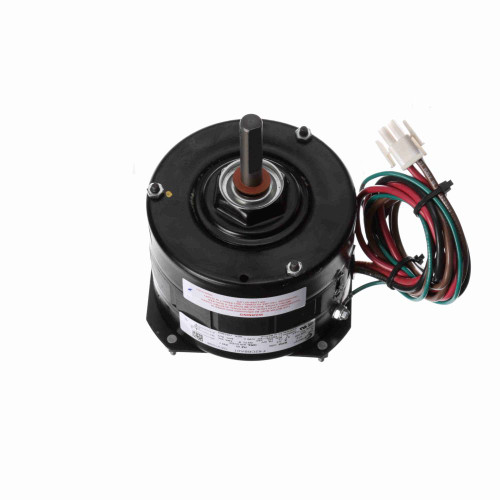

OEV1006 Century Evcon Condenser Motor 1/12 hp 1050 RPM 208-230V Century # OEV1006

Century Evcon Condenser Motor 1/12 hp 1050 RPM 208-230V (OEV1006)

This Century-manufactured Evcon condenser replacement motor (Catalog No. OEV1006) is designed for HVAC condenser units requiring a reliable 1/12 horsepower motor. It serves as a direct replacement for several OEM part numbers, ensuring compatibility and efficient operation in residential and commercial condenser applications.

Key Specifications

• Horsepower: 1/12 hp
• RPM: 1050
• Voltage: 208-230 V
• Amperage: 0.5 A
• Frame / Diameter: 5"
• Shaft Dimensions: 1/2" diameter x 5" length
• Rotation: Counterclockwise (CCW) Shaft End

Product Features & Fitment

This single-speed motor requires a 5 MFD/370VAC run capacitor (Century Part #5DV) for proper operation. It is recommended to replace the run capacitor when installing this motor to ensure optimal performance. The motor fits applications originally using part numbers such as F42B53A01, F42B53A48, F42C68A01, F42C68A48, 1468-41L, 024-26019, and 024-26067. Use the provided capacitor selection link to choose the appropriate capacitor for your setup.

Cross Reference

• F42B53A01, F42B53A48, F42C68A01, F42C68A48, 1468-41L, 024-26019, 024-26067

Warranty

1 Year Manufacturer Warranty
