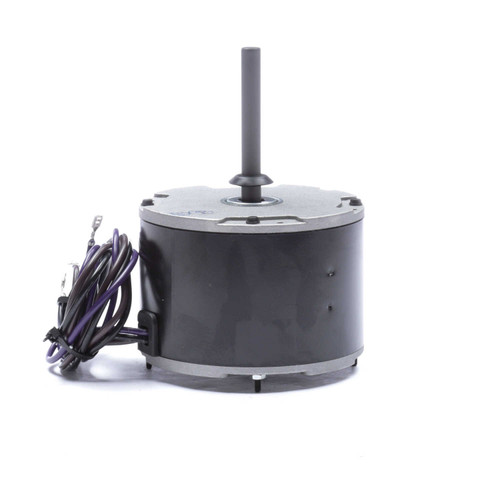

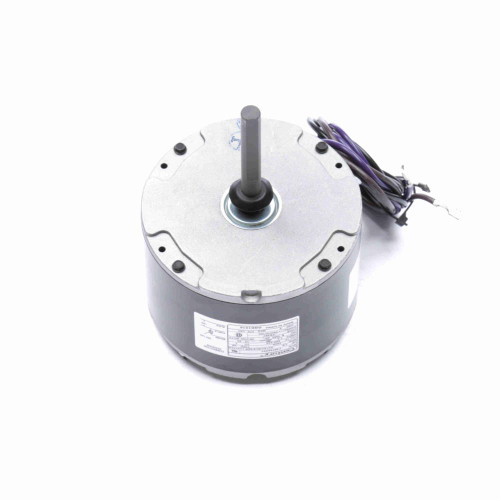

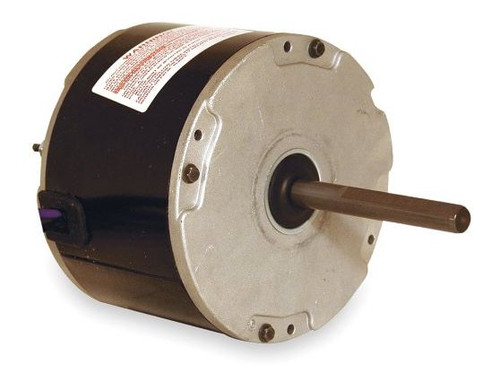

OGD1016 Century Goodman/Janitrol Condenser Motor 1/6 hp 1075 RPM 208-230V Century # OGD1016

OGD1016 Century Goodman/Janitrol Condenser Motor 1/6 hp 1075 RPM 208-230V

The OGD1016 is a 1/6 horsepower condenser fan motor designed for Goodman and Janitrol air conditioning units. It serves as a direct replacement for various Century, GE, Dayton, and Nidec motor models, ensuring reliable performance in HVAC condenser applications.

Key Specifications

• Horsepower: 1/6 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 1.0 amps
• Enclosure: TEAO (Totally Enclosed Air Over)
• Frame / Diameter: 5-5/8"
• Shaft Dimensions: 1/2" diameter x 3-3/4" length
• Rotation: CCW Lead End
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor operates at a single speed and requires a 5 MFD/370VAC run capacitor (Part #5DV) for proper function, which is recommended to be replaced during installation. It features 40" leads for easy wiring and a compact motor case length of 3-7/8". The OGD1016 is a suggested replacement for Goodman B13400-251, Century F48A90A76, F48F96A01, F48F96A76, 3216, GE 5KCP39BGK335S, Dayton 4M287, 3RCU8, and Nidec OGD1016N motors.

Cross Reference

• Goodman B13400-251
• Century F48A90A76, F48F96A01, F48F96A76, 3216
• GE 5KCP39BGK335S
• Dayton 4M287, 3RCU8
• Nidec OGD1016N

Warranty

1 Year Manufacturer Warranty
