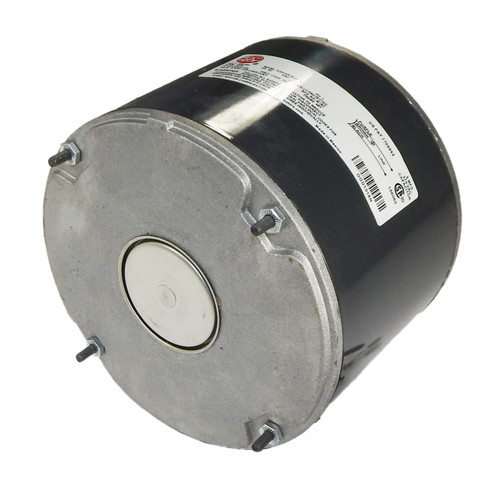

OGD1016N Direct Replacement | Goodman/Janitrol Condenser Motor 1/6 hp 1075 RPM 208-230V

OGD1016N Direct Replacement | Goodman/Janitrol Condenser Motor 1/6 hp 1075 RPM 208-230V

The OGD1016N is a direct replacement condenser motor designed for Goodman and Janitrol HVAC systems. It is engineered to deliver reliable performance and is compatible with several OEM part numbers, making it ideal for condenser motor repairs and replacements.

Key Specifications

• Horsepower: 1/6 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 1.0 amps
• Enclosure: TEAO (Totally Enclosed Air Over)
• Frame / Diameter: 5 5/8"
• Shaft Dimensions: 1/2" diameter x 3 3/4" length
• Rotation: CCW Lead End
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor requires a 5 MFD 370V capacitor (part #5DV) for proper operation. It features 40-inch leads for flexible wiring during installation. The motor case length measures 4-1/8", and it is designed for counterclockwise rotation when viewed from the lead end. Suggested replacement references include OGD1016, F48A90A76, F48F96A01, F48F96A76, 3216, 5KCP39BGK335S, B13400-251, Dayton 4M287, 3RCU8, and K55HXRTB-3034.

Cross Reference

• OGD1016, F48A90A76, F48F96A01, F48F96A76, 3216, 5KCP39BGK335S, B13400-251. Dayton 4M287, 3RCU8, K55HXRTB-3034

Warranty

1 Year Manufacturer Warranty
