ORV4540 Century 1/5 HP 115V 1650 RPM 3-speed Duotherm (F42C40A61, F42E63A61) RV Air Conditioner Motor

ORV4540 Century 1/5 HP 115V 1650 RPM 3-speed Duotherm RV Air Conditioner Motor

This OEM direct replacement motor is designed for Dometic Duotherm models, including part number 3105054.005. It is ideal for RV air conditioning applications requiring a reliable 3-speed motor with precise fitment.

Key Specifications

• Horsepower: 1/5 HP
• RPM: 1650
• Voltage: 115V
• Amperage: 2.5 Amps
• Enclosure: Semi-Enclosed Shell, Air Over
• Frame / Diameter: 42 Frame / 5" Diameter
• Shaft Dimensions: Double Shaft 4" x 1/2" x 2-1/2"
• Rotation: CCW Lead End
• Bearings: Sleeve Bearings

Product Features & Fitment

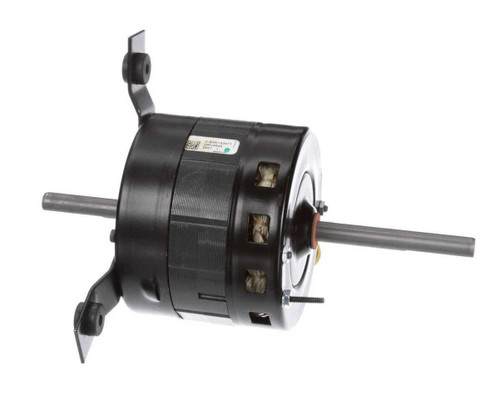

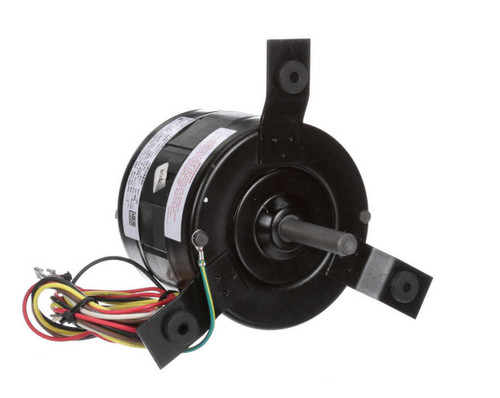

This motor features a permanent split capacitor (PSC) design and requires a 5 MFD 2-prong capacitor (not included). It includes 42" leads with AMP pins and 26" leads with female spade terminals for versatile wiring options. The motor has a round body with three welded tabs for lug mount on the lead end and comes with three "ear" brackets featuring 0.56" diameter holes and grommets on a 6" bolt circle, plus one extended stud on the lead end for secure installation. The open shaft and lead end frame design ensure proper airflow and cooling during operation.

Cross references include Dometic Duotherm 3105054.005, F42B34A61, F42C40A61, F42C40A01, F42C61A61, and F42E63A61. Be sure to verify specifications and dimensions to ensure compatibility.

Cross Reference

• F42B34A61, F42C40A61, F42C40A01, F42C61A61, F42E63A61

Warranty

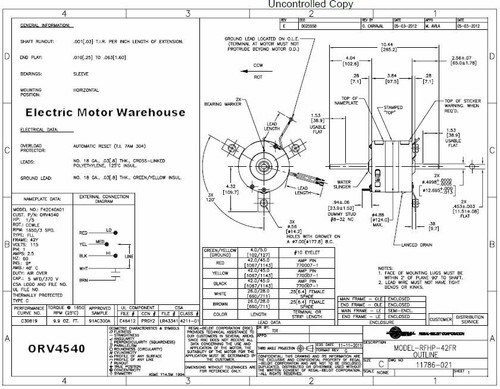

• Dimensional Drawing
