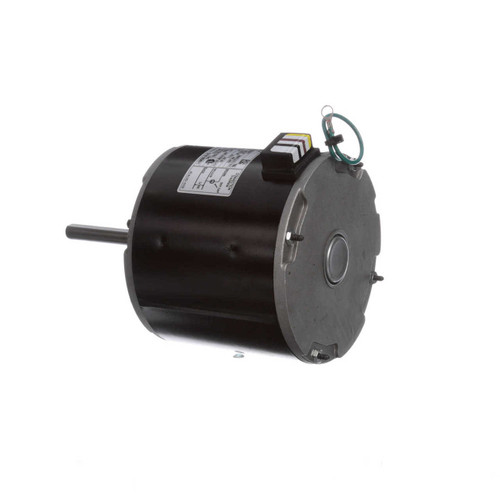

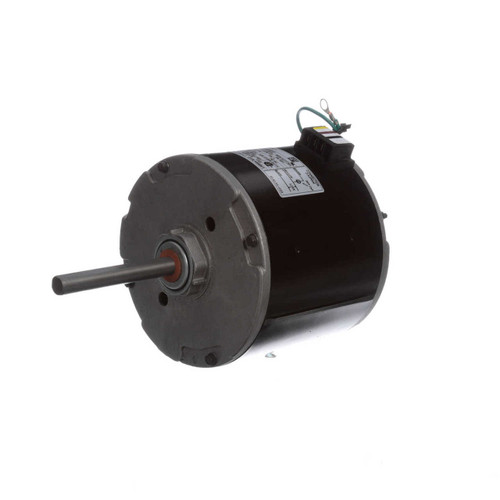

OYK1056V1 Century York (024-24110-001) Furnace Motor 1/2 hp 1090 RPM 208-230V Century # OYK1056V1

OYK1056V1 Century York (024-24110-001) Furnace Motor 1/2 hp 1090 RPM 208-230V

This Century-manufactured furnace motor is a direct replacement for York A/C condenser motors, specifically model 024-24110-001. Designed for HVAC applications, it delivers reliable 1/2 horsepower performance at 1090 RPM with a 208-230V power supply.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1090
• Voltage: 208-230V
• Amperage: 2.2 amps
• Frame / Diameter: 5 5/8"
• Shaft Dimensions: 1/2" x 4"
• Rotation: Clockwise (CW) Lead End
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a leadless design and requires a 7.5 MFD/370VAC run capacitor (part #7.5DV recommended). It is suggested as a replacement for York 024-24110-001, W48A11T388, GE 5KCP39LGN418S, and Dayton 4UY48 motors. For optimal performance, replacing the run capacitor during installation is recommended.

Cross Reference

• York 024-24110-001, W48A11T388
• GE 5KCP39LGN418S
• Dayton 4UY48

Warranty

1 Year Manufacturer Warranty
