QT0306 TECO-Westinghouse 30 HP 1200 RPM 326T 230/460V TEFC 3-Phase Oil Well Pump Motor
QT0306 TECO-Westinghouse 30 HP 1200 RPM 326T 230/460V TEFC 3-Phase Oil Well Pump Motor
QT0306 TECO-Westinghouse 30 HP 1200 RPM 326T 230/460V TEFC 3-Phase Oil Well Pump Motor
QT0306 TECO-Westinghouse 30 HP 1200 RPM 326T 230/460V TEFC 3-Phase Oil Well Pump Motor

TECO WESTINGHOUSE

QT0306 TECO-Westinghouse 30 HP 1200 RPM 326T 230/460V TEFC 3-Phase Oil Well Pump Motor

(No reviews) Write a Review
$3,543.10
SKU QT0306
Shipping Calculated at Checkout
Voltage 230/460V
Horsepower 30 HP
RPM 1200
Phase Three Phase
Frame 326T
Enclosure TEFC
Hertz 60 Hz
Amperage 71.0/36.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 30 hp 1200 RPM, 71.0/36.0 amps 230/460 Volts 60 Hz. Three Phase

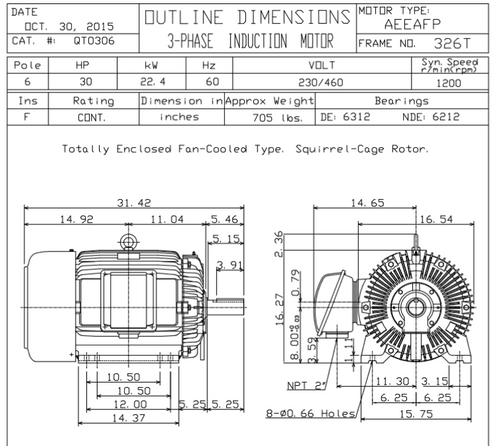

  • NEMA 326T Frame, 5 1/8 x 2 1/8" Dia. Keyed Shaft
  • Cast Iron Frame, Totally Enclosed Fan Cooled
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Rodent Screens, 5% Minimum Slip
  • 1 Year Manufacture Warranty

Oil well pump motor for use on oil pumps. Also good for any application requiring NEMA Design D torques.

Specifications
Voltage 230/460V
Horsepower 30 HP
RPM 1200
Phase Three Phase
Frame 326T
Enclosure TEFC
Hertz 60 Hz
Amperage 71.0/36.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
