R232M2A Century Purex 7.5 hp 3450 RPM 184TY Frame 208-230/460V Three Phase Century Pump Motor

R232M2A Century Purex 7.5 hp 3450 RPM 184TY Frame 208-230/460V Three Phase Century Pump Motor

The R232M2A is a commercial-grade Hydrotech (Purex) "C" Series pump motor designed to replace models R232 and R232M2. It is ideal for use with Aurora Pump 293-0156 and other compatible pump systems requiring a reliable, reversible three-phase motor.

Key Specifications

• Horsepower: 7.5 HP
• RPM: 3450
• Voltage: 208-230/460V, 50/60 Hz
• Amperage: 18.6/9.3 Amps
• Enclosure: Open Drip Proof
• Frame / Diameter: 184TY, 184TDZ
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

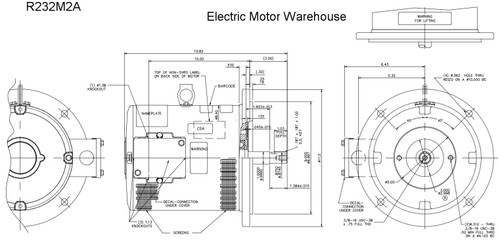

This motor features a D-flange mount with a round body and no base, facilitating direct pump mounting. It includes four non-threaded bolt holes on the flange spaced 10 inches on center across the shaft for secure installation. The motor shaft is keyed to fit the "C" Series pump configuration. Wiring diagrams are provided on the motor nameplate for easy electrical connection.

This product ships by truck and is recommended for delivery to business addresses.

Cross Reference

• R232, R232M2

Warranty

1 Year Manufacturer Warranty
