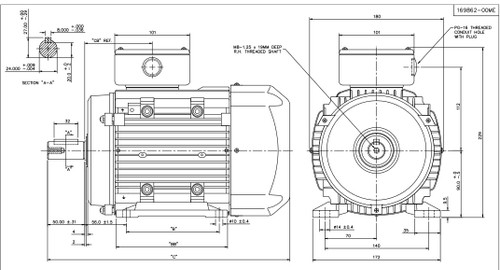

R319A Marathon | 2 hp 1.5 kW 230/460V 1800 RPM 3-Phase 90S Frame TEFC (rigid base) Motor

SKU:
R319A
Weight:
44.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $550.20
Now: $500.20
  • 2 hp 1.5 kW, 1800 RPM, 5.4/2.7 amps 230/460 Volts 60hz. Three Phase
  • Metric 90S Cast Aluminum frame, Keyed Shaft 24 mm Diameter x 50 mm
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation, B3 Mounting
  • 1 Year Manufacture Warranty

This is a metric general purpose three phase motor with a rigid base mount. Shaft has keyway. General purpose motors are for use in situations not having special requirements. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled
Marathon # 090LT17FH6326, Replaces Leeson 192205.00
