Marathon

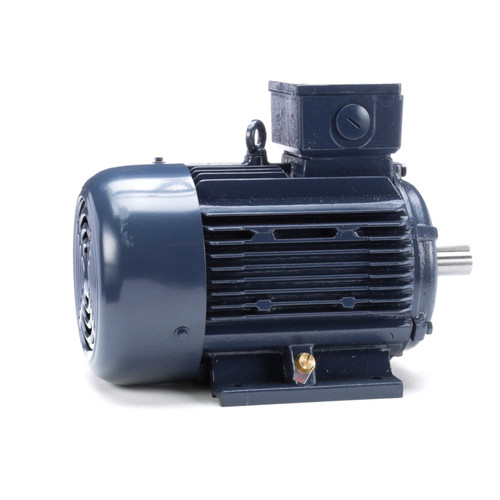

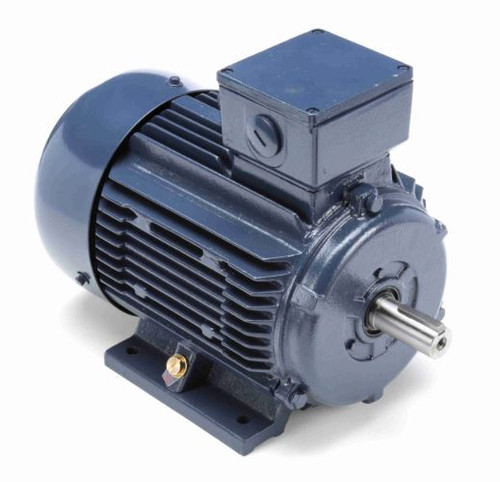

R325B Marathon 5.5 hp 4 kw 1800 RPM 112M Frame 230/460V Marathon Electric Metric Motor
(No reviews)
Write a Review
Write a Review
Marathon
R325B Marathon 5.5 hp 4 kw 1800 RPM 112M Frame 230/460V Marathon Electric Metric Motor
$968.42
$845.25
SKU
MR325
Availability
Motor may have "A" Suffix, same product
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
5-1/2 HP
RPM
1800
Phase
Three Phase
Frame
112M
Enclosure
TEFC
Amperage
13.8/6.9 Amps
Service Factor
1.15
Insulation Class
Class F
- 5.5 hp 4 kw 1800, 13.8/6.9 amps 230/460 Volts Three Phase Motor

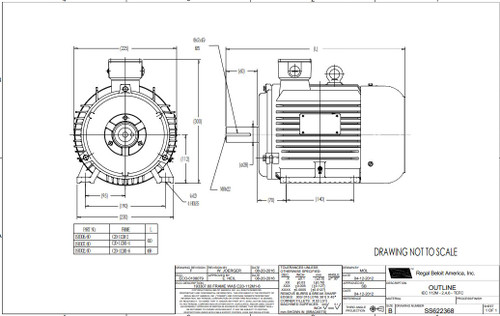

- IEC 112M Frame keyed shaft 28mm x 60mm
- TEFC - IP55 Weatherproof Enclosure - Conduit Box Location = F3 (top)
- Inverter Rated Insulation System (IRIS) - Service Factor: 1.15
- TEFC = Totally Enclosed Fan Cooled; Class F Insulation
- 1 Year Manufacture Warranty
12-Lead Delta Windings (160MD frame & larger) for across the line or wye-delta starts. Class F insulation. Oil seals on both drive end and non drive end. Drilled and tapped shaft. CSA file #LR33543, UL file #E57948,Conformite European.
Marathon Model: TCA0042AE211GAA009
Replaces R325A, 112MTFC6536
Replaces Leeson 193307.60
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 5-1/2 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 112M |
| Enclosure | TEFC |
| Amperage | 13.8/6.9 Amps |
| Service Factor | 1.15 |
| Insulation Class | Class F |
