sale
Marathon

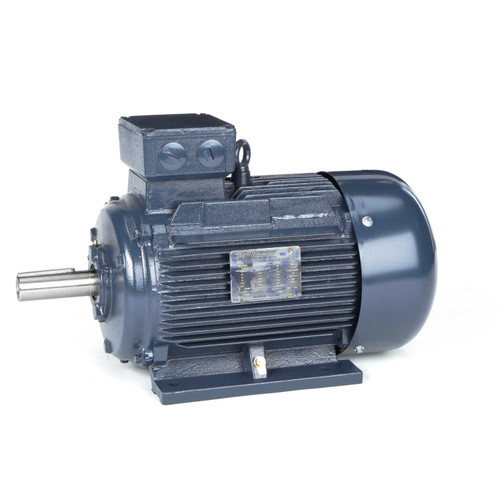

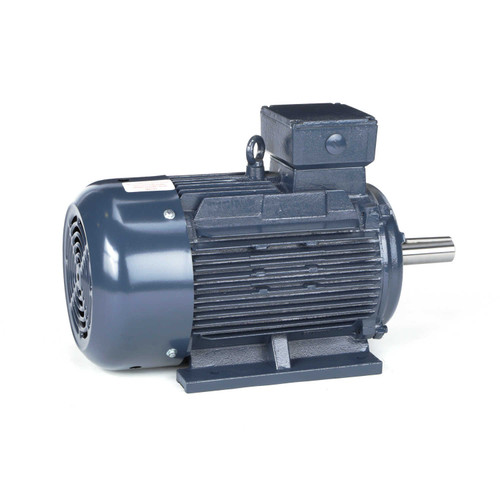

R335B Marathon 15 hp 11 kw 1200 RPM 160L Frame 230/460V Marathon Electric Metric Motor
(No reviews)
Write a Review
Write a Review
Marathon
R335B Marathon 15 hp 11 kw 1200 RPM 160L Frame 230/460V Marathon Electric Metric Motor
$3,647.03
$3,166.95
SKU
MR335B
Availability
Motor may have "A" Suffix
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
15 HP
RPM
1200
Phase
Three Phase
Frame
160L
Enclosure
TEFC
Amperage
38.0/19.0 Amps
Service Factor
1.15
Insulation Class
Class F
- 15 hp 11 kw 1200 RPM, 38.0/19.0 amps 230/460 Volts Three Phase Motor
- IEC 160L Frame keyed shaft 42mm x 110mm
- TEFC - IP55 Weatherproof Enclosure - Conduit Box Location = F3 (top)
- Inverter Rated Insulation System (IRIS) - Service Factor: 1.15
- TEFC = Totally Enclosed Fan Cooled; Class F Insulation
- 1 Year Manufacture Warranty
12-Lead Delta Windings (160MD frame & larger) for across the line or wye-delta starts. Class F insulation. Oil seals on both drive end and non drive end. Drilled and tapped shaft. CSA file #LR33543, UL file #E57948,Conformite European.
Marathon Model: TCA0113AE211GAA009
Replaces R335A, 160LTFC6588
Replaces Leeson C160T11FZ40A, 193317.60
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 15 HP |
| RPM | 1200 |
| Phase | Three Phase |
| Frame | 160L |
| Enclosure | TEFC |
| Amperage | 38.0/19.0 Amps |
| Service Factor | 1.15 |
| Insulation Class | Class F |
