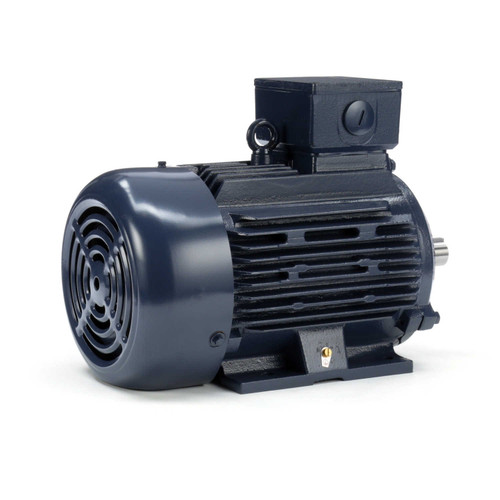

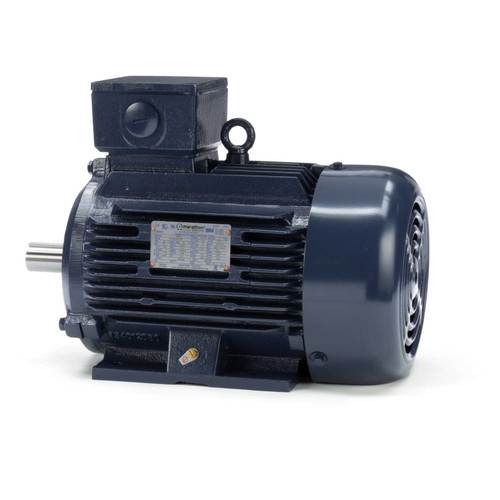

R352B Marathon 4 hp 3 kw 1800 RPMÂ 100L Frame 230/460V Marathon Electric Metric Motor
(No reviews)
Write a Review
Write a Review
Marathon
R352B Marathon 4 hp 3 kw 1800 RPMÂ 100L Frame 230/460V Marathon Electric Metric Motor
$826.74
$776.25
SKU
MR352B
UPC
7.23E+11
Availability
LIMITED STOCK
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
4 HP
RPM
1800
Phase
Three Phase
Frame
100L
Enclosure
TEFC
Hertz
50/60 Hz
Amperage
10.4/5.2 Amps
Service Factor
1.15
Insulation Class
Class F
- 4 hp 3 kw 1800 RPM, 10.4/5.2 amps
- 230/460 Volts 50/60HZ
- Three Phase Motor

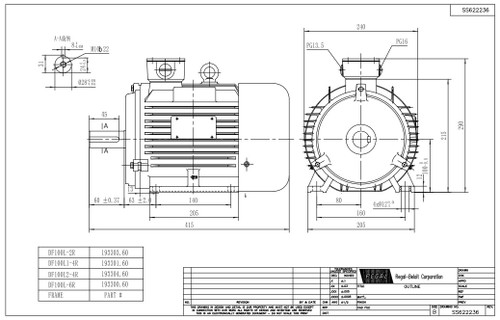

- IEC 100L Frame keyed shaft 28mm x 60mm
- TEFC - IP55 Weatherproof Enclosure - Conduit Box Location = F3 (top)
- Inverter Rated Insulation System (IRIS) - Service Factor: 1.15
- TEFC = Totally Enclosed Fan Cooled; Class F Insulation
- 1 Year Manufacture Warranty
12-Lead Delta Windings (160MD frame & larger) for across the line or wye-delta starts. Class F insulation. Oil seals on both drive end and non drive end.
100LTFC6536, TCA0032AE211GAA009
Replaces Leeson 193091.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 4 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 100L |
| Enclosure | TEFC |
| Hertz | 50/60 Hz |
| Amperage | 10.4/5.2 Amps |
| Service Factor | 1.15 |
| Insulation Class | Class F |
