sale
Marathon

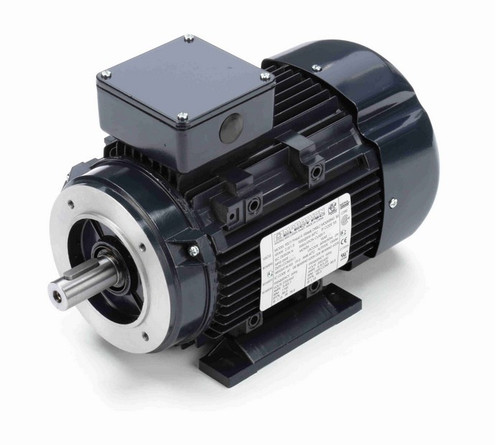

R378A Marathon | 2 hp 1.5 kW 230/460V 1800 RPM 3-Phase 90LC Frame TEFC (rigid base) Motor
(No reviews)
Write a Review
Write a Review
Marathon
R378A Marathon | 2 hp 1.5 kW 230/460V 1800 RPM 3-Phase 90LC Frame TEFC (rigid base) Motor
$908.50
$839.44
SKU
MR378A
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
230/460V
Horsepower
2 HP
RPM
1800
Phase
Three Phase
Frame
90LC
Enclosure
TEFC
Hertz
60 Hz
Amperage
5.4/2.7 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
R378A Marathon | 2 hp 1.5 kW 230/460V 1800 RPM 3-Phase 90LC Frame TEFC (rigid base) Motor
This Marathon R378A motor is a general-purpose, three-phase industrial motor designed for applications requiring reliable performance and durability. It replaces Leeson models 192207.00, 192207.30, and 192078.00, making it suitable for various standard motor replacements.
Key Specifications
- Horsepower: 2 hp (1.5 kW)
- RPM: 1800
- Voltage: 230/460 V
- Amperage: 5.4/2.7 A
- Enclosure: Totally Enclosed Fan-Cooled (TEFC)
- Frame / Diameter: Metric 90LC Aluminum frame

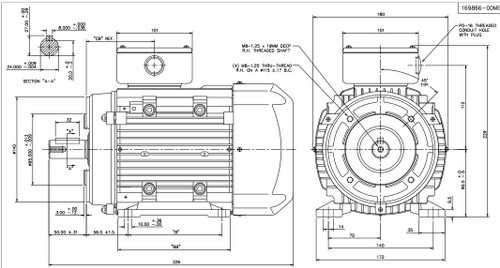

- Shaft Dimensions: 24 mm diameter x 50 mm length, keyed shaft
- Rotation: Reversible
- Bearings: Ball bearings
Product Features & Fitment
This motor features a rigid base mount for stable installation and is designed with Class F insulation for enhanced thermal protection. It includes a keyed shaft for secure coupling and supports B3/B14 mounting configurations. The wiring diagram is conveniently located on the motor nameplate to assist with installation.
Cross Reference
- Leeson 192207.00, 192207.30, 192078.00
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 230/460V |
| Horsepower | 2 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 90LC |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 5.4/2.7 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
- Leeson 192207.00, 192207.30, 192078.00
