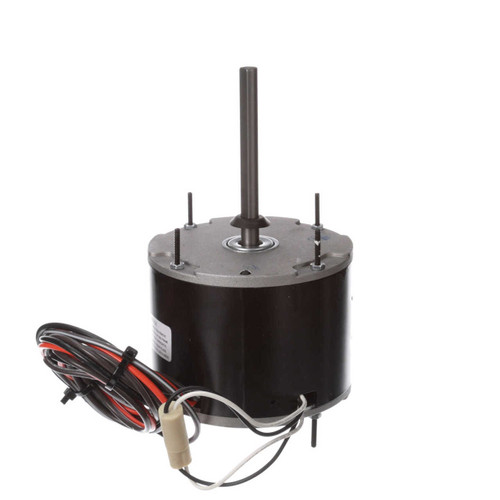

ORM1008 Century Rheem - Rudd Motor (21276-01) 1/8 hp, 825 RPM, 208-230 Volts Century # ORM1008

ORM1008 Century Rheem - Rudd Motor (21276-01) 1/8 hp, 825 RPM, 208-230 Volts

This 1/8 horsepower motor is a reliable replacement for Rheem-Rudd models 21276-01, 21276-01-02, and equivalent units from Dayton and GE. Designed for HVAC and industrial applications, it delivers consistent performance with reversible rotation and a single-speed operation.

Key Specifications

• Horsepower: 1/8 hp
• RPM: 825
• Voltage: 208-230 Volts
• Amperage: 0.7 amps
• Enclosure: TEAO (Totally Enclosed Air Over)
• Frame / Diameter: 5.6" Diameter
• Shaft Dimensions: 1/2" diameter x 4 13/16" length
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

The motor features four mounting holes in the shell for secure installation. A 5 MFD 370V capacitor (Part #5DV) is required for operation but sold separately. This motor is engineered for easy replacement of specified Rheem-Rudd and compatible models, ensuring seamless integration into existing HVAC systems.

Cross Reference

• Rheem-Rudd 21276-01, 21276-01-02, 5KCP39GGD121S, 5KCP39GGK789S, 5KCP39GGN333S, Dayton 4UY91, GE 3155

Warranty

1 Year Manufacturer Warranty
