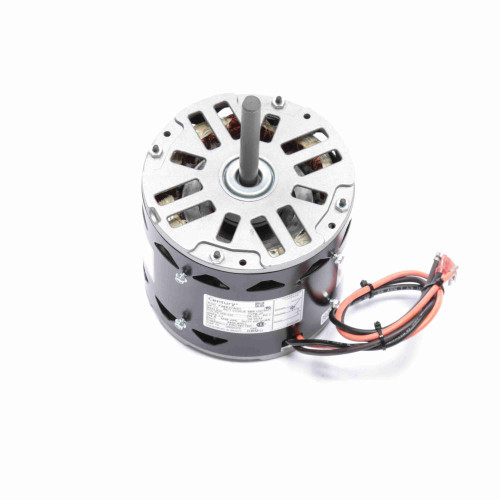

ORM1076 Century Rheem - Rudd Motor (51-22859-01, 51-23017-41) 3/4 hp 1075 RPM 115V Century # ORM1076

ORM1076 Century Rheem - Rudd Motor (51-22859-01, 51-23017-41) 3/4 hp 1075 RPM 115V

This 3/4 horsepower motor is a direct replacement for Rheem-Rudd models including F48C47A94, 51-22859-01, and 51-23017-41. Designed for HVAC and industrial applications, it delivers reliable performance with a 4-speed operation at 1075 RPM.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1075
• Voltage: 115V
• Amperage: 10.5 amps
• Frame / Diameter: 5 5/8"
• Shaft Dimensions: 1/2" x 5"
• Rotation: Clockwise (facing shaft)
• Bearings: Ball bearing

Product Features & Fitment

The motor features 8 mounting holes in the shell for secure installation and includes 35" leads for electrical connections. A 15 MFD 370V capacitor (part #15DV) is required for operation but sold separately. This motor is engineered for easy replacement and compatibility with various OEM models such as Dayton 4VA34 and KA55HXJRT-9911.

Cross Reference

• Rheem-Rudd F48C47A94, 51-22859-01, 51-23017-41, HQ612367EM, 612367, KA55HXJRT-9911, Dayton 4VA34

Warranty

1 Year Manufacturer Warranty
