TECO WESTINGHOUSE

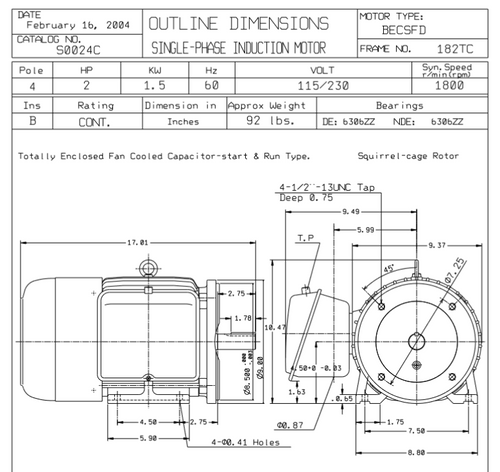

S0024C TECO-Westinghouse 2 HP 1800 RPM 182TC Frame 115/230V TEFC Cast Iron 1-Ph Motor
(No reviews)
Write a Review
Write a Review
TECO WESTINGHOUSE
S0024C TECO-Westinghouse 2 HP 1800 RPM 182TC Frame 115/230V TEFC Cast Iron 1-Ph Motor
$738.78
SKU
S0024C
Shipping
Calculated at Checkout
Voltage
115/230V
Horsepower
2 HP
RPM
1800
Phase
Single Phase
Frame
182TC
Enclosure
TEFC
Hertz
60 Hz
Amperage
28.0/14.0 Amps
Bearings
Ball Bearings
Speeds
1-Speed
Insulation Class
Class F
TECO WESTINGHOUSE, FARM DUTY ELECTRIC MOTOR
- 2 hp 1800 RPM, 1-Speed, 28.0/14.0 amps, 115/230 Volts 60 Hz.
- 182TC Cast Iron Frame, Shaft: 1 1/8" x 2 3/4" with Key
- Rotation = Reversible, Overload Protector: Manual
- Service Factor = 1.15, Insulation Class F
- Ball Bearing, Capacitor Start - PSC Run
- 1 Year Manufacture Warranty
Farm Duty Motor. Totally Enclosed Fan Cooled (TEFC)
| Voltage | 115/230V |
|---|---|
| Horsepower | 2 HP |
| RPM | 1800 |
| Phase | Single Phase |
| Frame | 182TC |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 28.0/14.0 Amps |
| Bearings | Ball Bearings |
| Speeds | 1-Speed |
| Insulation Class | Class F |
