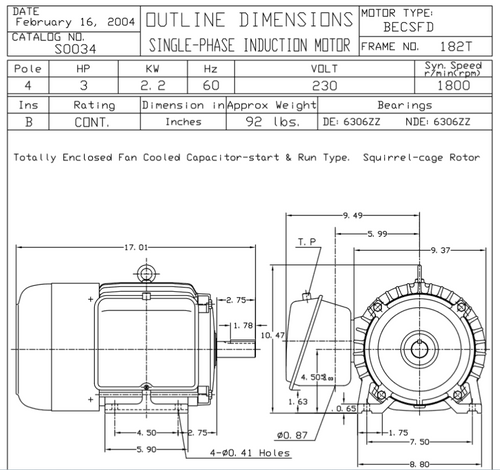

S0034 TECO-Westinghouse 3 HP 1800 RPM 182T Frame 230V TEFC Cast Iron 1-Ph Motor

S0034 TECO-Westinghouse 3 HP 1800 RPM 182T Frame 230V TEFC Cast Iron 1-Ph Motor

This TECO-Westinghouse farm duty electric motor is designed for reliable performance in agricultural and industrial applications. It serves as a direct replacement for 3 HP, 1800 RPM single-phase motors requiring a durable, totally enclosed fan cooled (TEFC) design.

Key Specifications

• Horsepower: 3 HP
• RPM: 1800
• Voltage: 230 V
• Amperage: 21.0 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: 182T Rolled Steel
• Shaft Dimensions: 1 1/8" diameter x 2 3/4" length with key
• Rotation: Reversible
• Bearings: Ball Bearing

Product Features & Fitment

This motor features a capacitor start and permanent split capacitor (PSC) run design, ensuring efficient starting and smooth operation. It includes a manual overload protector and insulation class B for enhanced durability. The cast iron construction and farm duty rating make it suitable for demanding environments.

Warranty

1 Year Manufacturer Warranty
