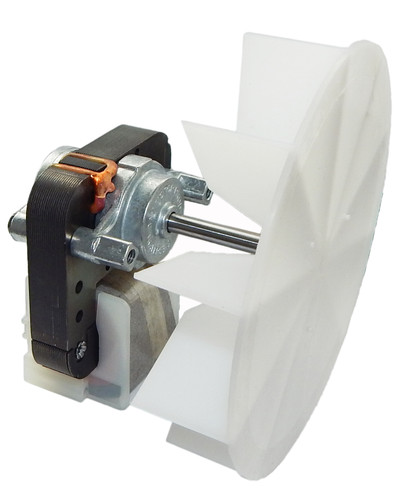

NuTone Vent Fan Motor and Fan Blade (S1200A000)

This NuTone vent fan motor and fan blade assembly is designed as a direct replacement for select NuTone exhaust and utility fans. It is ideal for restoring or upgrading ventilation systems in residential or light commercial applications.

Key Specifications

• Voltage: 115 Volts
• Frame / Diameter: C-Frame Motor, 6-5/8" Fan Blade Diameter
• Shaft Dimensions: 1-13/16" Shaft Length
• Rotation: Clockwise (CW) Shaft End

Product Features & Fitment

The assembly includes a 5-blade fan and a motor with two mounting studs on the back for secure installation. It features a 2-prong plug and is designed for air-over-motor operation. Compatible with NuTone models 686 (Vertical Discharge Fan), M686 (Mercury Series Exhaust Fan), 687 (Utility Series Through-Wall Fan), and 8870 (Vertical Discharge Fan). Cross-reference part numbers include 101-1722, AG2215A, EA1D001F, EA1D009F, and others for easy identification.

Warranty

1 Year Manufacturer Warranty
