S5P1A Nidec 5 hp 3600 RPM 184T Frame 208-230/460V TEFC 3-Phase Electric Motor

SKU:
S5P1A
Weight:
65.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $583.00
Now: $520.20
Adding to cart… The item has been added
  • 5 hp 3600 RPM, 13.6-12.1/6.1 amps  208-230/460 Volts 50/60 Hz Three Phase Motor

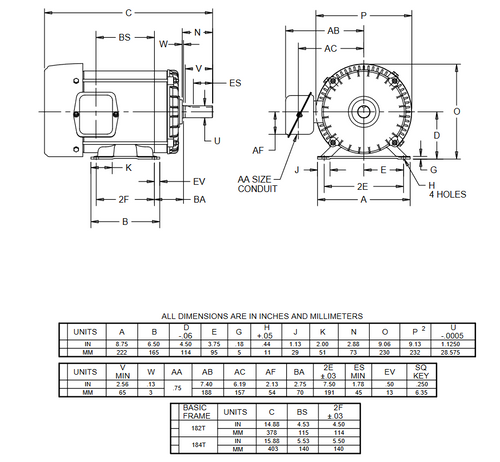

  • NEMA 184T frame Keyed Shaft 1 1/8" Diameter x 2 1/4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount,  Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. DA52
