S7P1ACR Nidec 7 1/2 hp 3600 RPM 213TC Frame (No Base) 208-230/460V TEFC 3-Phase Electric Motor

SKU:
S7P1ACR
Weight:
105.00 LBS
Shipping:
Calculated at Checkout
$695.53
  • 7 1/2 hp 3600 RPM, 23.4-17.9/10.3 amps 208-230/460 Volts 60 Hz Three Phase Motor

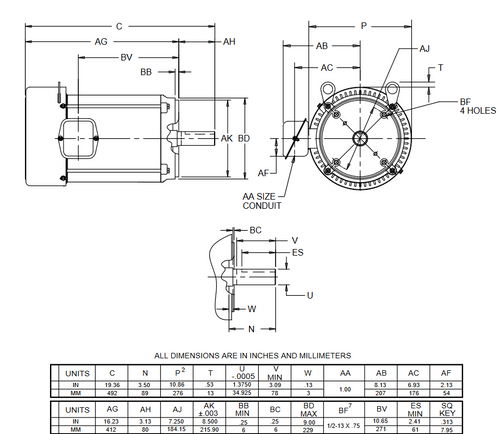

  • NEMA 213TC frame Keyed Shaft 1 3/8" Diameter x 3 1/8"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose C- Face motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. DT89
