S7P2A Nidec 7 1/2 hp 1800 RPM 213T Frame 208-230/460V TEFC 3-Phase Electric Motor

S7P2A Nidec 7 1/2 hp 1800 RPM 213T Frame 208-230/460V TEFC 3-Phase Electric Motor

This general-purpose three-phase electric motor is designed for a wide range of industrial applications requiring reliable performance and durability. It is suitable for replacing or upgrading existing motors with similar specifications.

Key Specifications

• Horsepower: 7 1/2 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 20.0-18.1/9.1 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

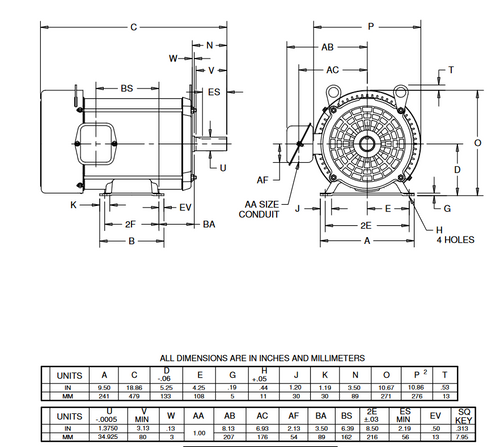

• Frame / Diameter: NEMA 213T frame
• Shaft Dimensions: Keyed shaft, 1 3/8" diameter x 3 1/2" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor features a rigid base mount for stable installation and Class F insulation for enhanced thermal protection. It includes a wiring diagram on the motor nameplate to assist with proper electrical connections. This motor does not include overload protection and is designed for use in environments requiring a totally enclosed fan-cooled motor.

Warranty

1 Year Manufacturer Warranty
